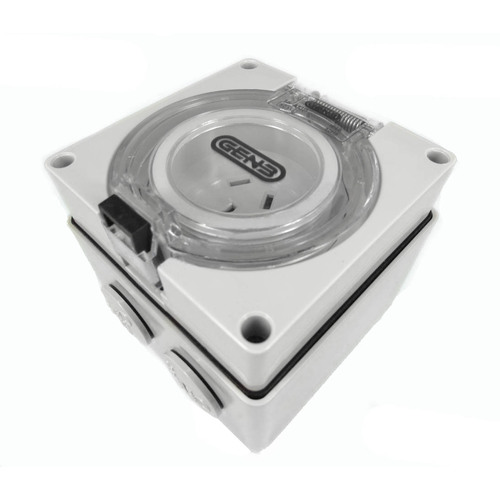

3 Pin 15 Amp Surface Socket Outlet Flat Auto Switched SCA315

SKU: gensursoa315

$37.70

15 AMP Single Phase 3 Pin Flat Weatherproof Surface Socket Automatic



  • GEN3
  • Item Code: SCA315
  • 15 AMP Single Phase 3 Pin Flat Single Weatherproof Fixed Socket
  • Automatic Switching Mechanism ( No Separate Switch Required )
  • 3 Pin 15 Amp Socket
  • Industrial Switchgear
  • 250 Volt
  • Dimensions: 100mm x 100mm x 90mm
  • Mounting Template Provided
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
  • All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius
  • Colour is Grey

(gensursoa315)

General Specifications
SKU gensursoa315
Supplier Code SCA315
Style Series 56 Style
Rating IP66
Electrical Specifications
Volts 250V
Amps 15Amp
Pins 3 Pin
Pin Type Flat
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.
Dimensions & Packaging
Length (mm) 108.9
Width (mm) 101
Depth (mm) 100.5
Box Length (cm) 12
Box Width (cm) 11
Box Height (cm) 12
Box Qty 1
Box Weight (kg) 0.50
Carton Qty 24
Compliance & Approvals
Approvals Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility Products are interchangeable with other major brands.
SKU gensursoa315
Manfacturer Part Number SCA315
Colour Grey
Brand GEN3
