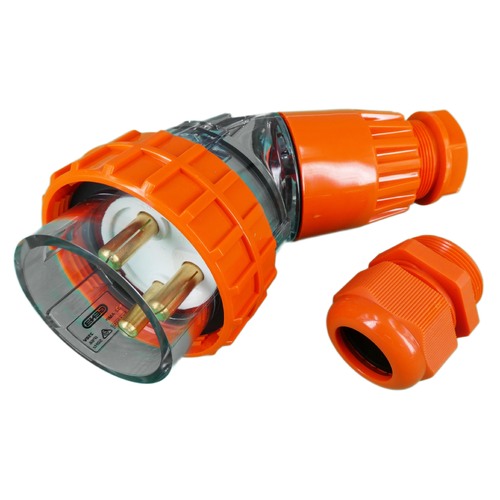

GEN3 3 Pin 32 Amp Industrial Angled Extension Plug PLAR332

SKU: genextpla332

$26.40

32 AMP Single Phase 3 Pin Angled Extension Plug Top Industrial Electrical IP66 GEN3



  • GEN3
  • Item Code: PLAR332
  • 32 AMP Single Phase 3 Pin Round Angled Extension Plug Top
  • 45 Degree Angled Model.
  • 500 Volt
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
  • All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • All GEN3 plug tops have compression glands for quick cable termination.
  • All GEN3 switch sockets have mounting templates for fast and easy installation.
  • GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius
  • Colour is Orange

(genextpla332)

General Specifications
SKU genextpla332
Supplier Code PLA3PH332
Style Series 56 Style
Rating IP66
Electrical Specifications
Volts 250V
Amps 32Amp
Pins 3 Pin
Pin Type Round
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.
Dimensions & Packaging
Length (mm) 126.1
Diameter (mm) 79.8
Box Length (cm) 20.5
Box Width (cm) 9
Box Height (cm) 10
Box Qty 1
Box Weight (kg) 0.41
Carton Qty 24
Compliance & Approvals
Approvals Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility Products are interchangeable with other major brands.

Gemini can make mis

SKU genextpla332
Manfacturer Part Number PLAR332
Colour Orange
Brand GEN3
