6mm Figure 8 Twin DC Solar Cable 020m Cut

SKU: cabsoltwi6.20m

6mm Figure 8 Twin DC Solar Cable 020m Cut

$76.36 (ex-GST)

$84.00 (inc-GST)

$84.00

$76.36

(inc-GST)
(ex-GST)
  • ⚫︎ Sold Out - Backorder Available

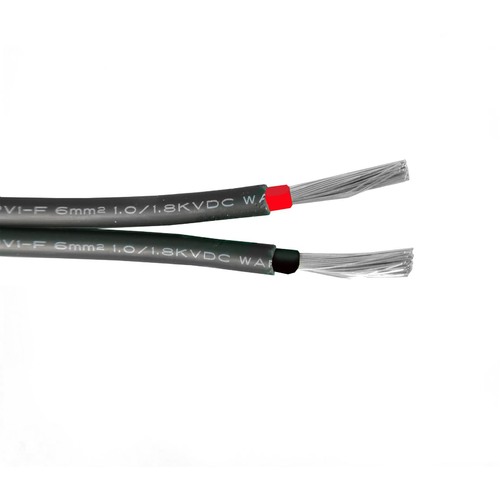

6mm Figure 8 Twin DC Solar Cable

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Product on Back order More Stock Available in 1-7 Days

  • 6mm Figure 8 Twin DC Solar Cable 20m cut
  • Used for Inter Connection in photovoltaic Systems for both residential and commercial installations
  • Temperature Rating 120C
  • PV1-F Photovoltaic Cable
  • UV Stabilised
  • Metre Marked
  • Tinned Copper, Class 5 in accordance with IEC 60228
  • Sheath - Electron beam Cross Linked Compounds
  • Voltage 0.9/1.8kV DC (0.6/1kV AC)
  • Colour - Figure 8 Black Sheath Red and Black Cores
  • Max DC Resistence  @ 20C mΩ/ml - 3.39
  • Nominal OD 5.3 x 10.8 mm
  • Please choose cable type & Length carefully as there are no refunds or exchanges on cut to order material.



(cabsoltwi6.20m)

SKU cabsoltwi6.20m
Manfacturer Part Number F8TUV6B
Colour Black
Brand Unbranded
