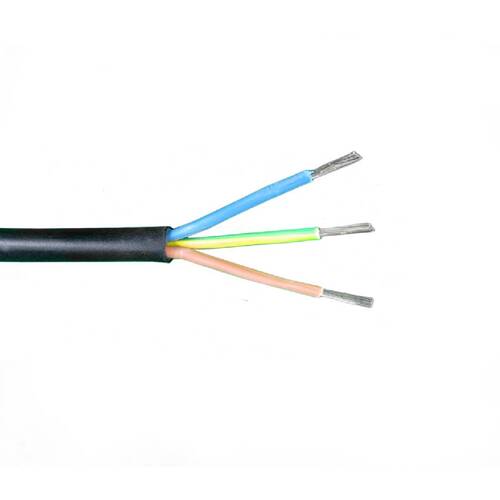

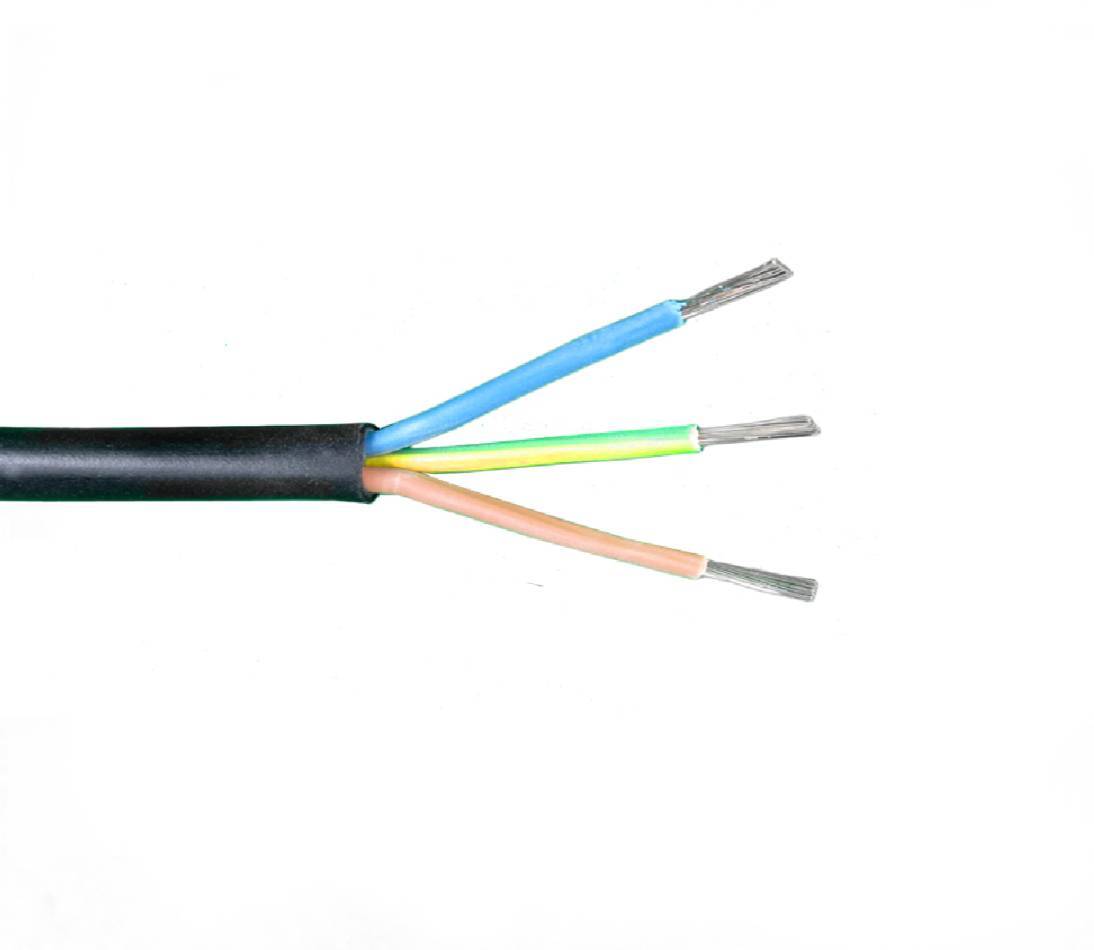

H07 Rubber Flexible Cable Single Phase 3 Core 0.75 mm2 per Metre

SKU: cabh073g0.75

$2.40

H07 Rubber Flexible Cable Single Phase 3 Core 0.75 mm2 per Metre


Order In Lots Of 5 Minimum Order Quantity 5

  • H07 Rubber Flexible Cable Single Phase 3 Core 0.75 mm2 per Metre
  • Typically used for connections to portable equipment, limit switches wherever flexible connections are required
  • Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
  • Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
  • Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
  • Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.
  • Rated Voltage - 0.6/1kV
  • The cable is submersible to 200mtrs, Suitable for fresh water, salt water, sewage/contaminated water. UV,
    Sunlight and weather resistant. Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004.
  • Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)
  • This flex has full Australian Approvals.


Pricing:

  • Cable is priced per metre.

How to Order your Quantity:

  • To order, specify the quantity in metre units. For example, to order 15 metres, enter 15 as the order quantity.
  • All quantities will be supplied in one continuous length up to 500 metres unless otherwise requested.
  • Please choose cable type & length carefully as there are no refunds or exchanges on cut to order material.

(cabh073g0.75)

SKU cabh073g0.75
Colour Black
Brand Unbranded
