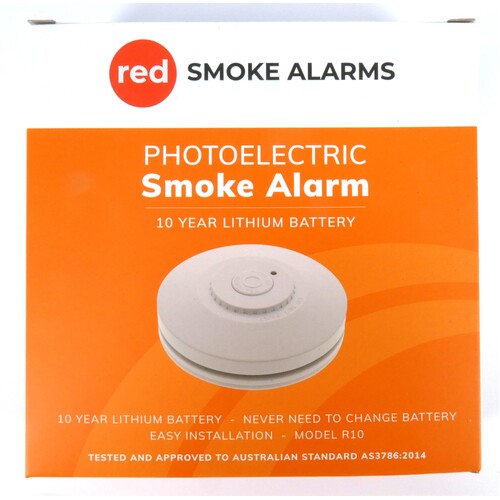

Model No: R10
- Stand alone smoke alarms.
- Inter-connected alarms are required by law in some jurisdictions. Click here for inter-connected smoke alarms.
- A photoelectric, 10 year sealed lithium battery smoke alarm.
- Suitable for Installation in Caravan RV, Trailers and Motorhomes.
- No wiring required for installation and no need to ever change the battery.
- The smoke alarm includes a test/hush button and visual indicators.
- The R10 smoke alarm is approved and certified to meet AS3786:2014.
- The smoke alarm is 140mm diameter making it a perfect size when replacing faulty or expired alarms.
- Clipsal has No Equivalent, Brooks Equivalent EIB650iC,PSA Equivalent LIFPE10
- For Full Specifications Click on the Brochure Link Under The Main Image.
(rer10)
Red Smoke Alarms R10 Spec Sheet
| Key Information | |
| Product Brand | Red Smoke Alarms |
| Product or Component | Smoke Detector |
| Device Application | Early detection of smouldering fires and open fires |
| Electronic Sensor Type | Photo-electric sensor |
| Colour | White (RAL 9003) |
| Quantity per Set | Set of 1 |
| Type of Packing | Carton |
| Battery Type | 3V DC Sealed Lithium Battery |
| Battery Life | 10 Year |
| Operating Current | < 60mA at 3V |
| Standby Power | < 0.04 mW |
| Detection Type | Smoke |
| Function Available | Hush Function, Self-test of smoke detection, Local alarm |
| Control Type | Button for test/hush function |
| Response Time | Approx. 8s |
| Noise Level | 85 dB at 3m minimum |
| Time Delay Range | 10 min for hush |
| Local Signal | Sound: Alarm, Sound: Signal, Visual: 1 LED (red for warning and low battery) |
| Type of Installation | Indoor |
| Device Mounting | Surface |
| Mounting Support | Wall-mount, Ceiling |
| Fixing Mode | By screws |
| Diameter | 140 mm |
| Height | 39 mm |
| Environment | |
| Ambient Air Temperature for Operation | 0...45°C |
| Relative Humidity | 5...95% |
| Standards | AS 3786 : 2014 / amdt 2:2018 |
| Disclaimer | |
| The information provided in this table contains general descriptions and/or technical characteristics of the performance of the products contained herein. This table is not intended as a substitute for and is not to be used for determining suitability of reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither Red Smoke Alarms PTY. LTD nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. | |
| SKU | rer10 |
| Brand | Red Smoke |
