Model No: R240RC
-

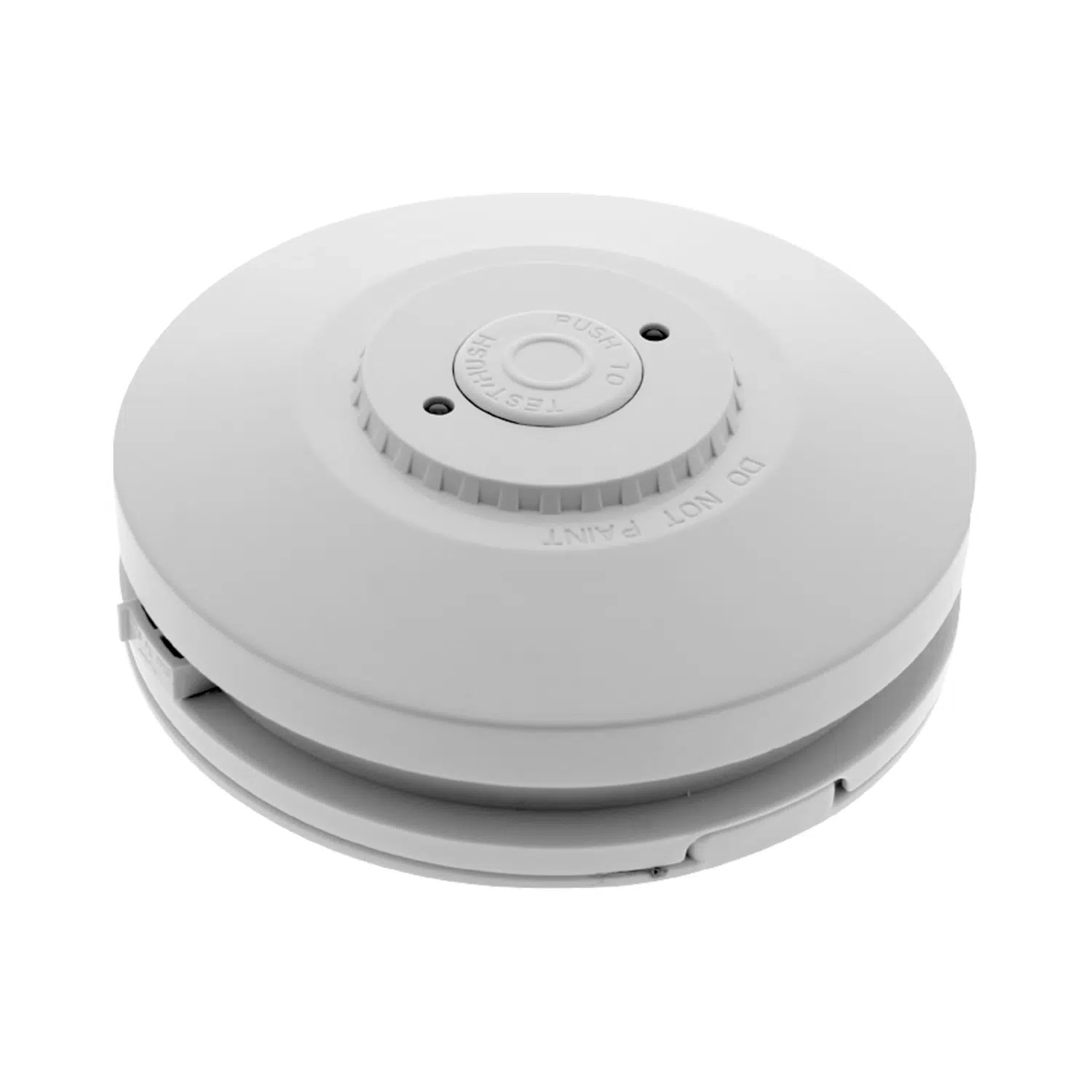

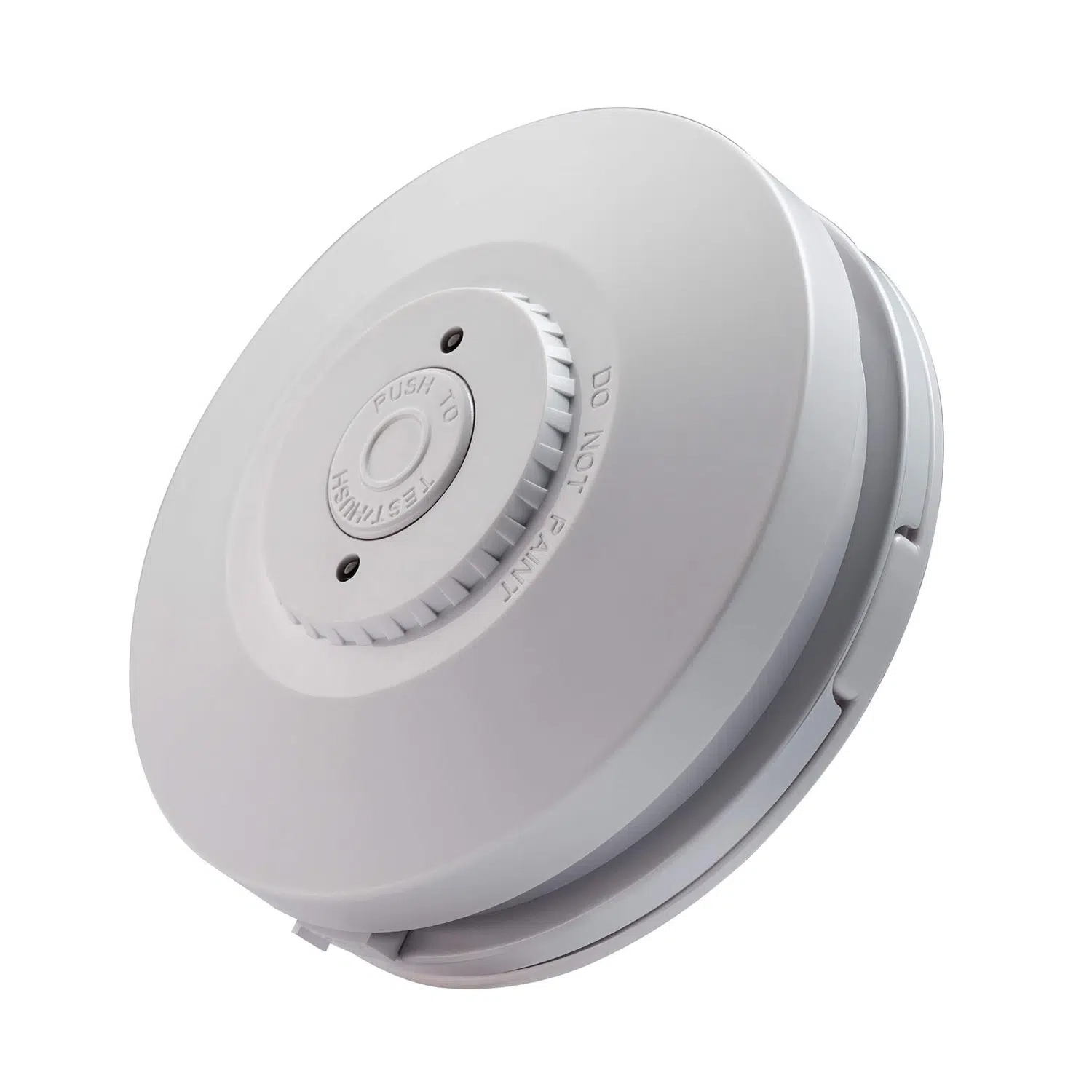

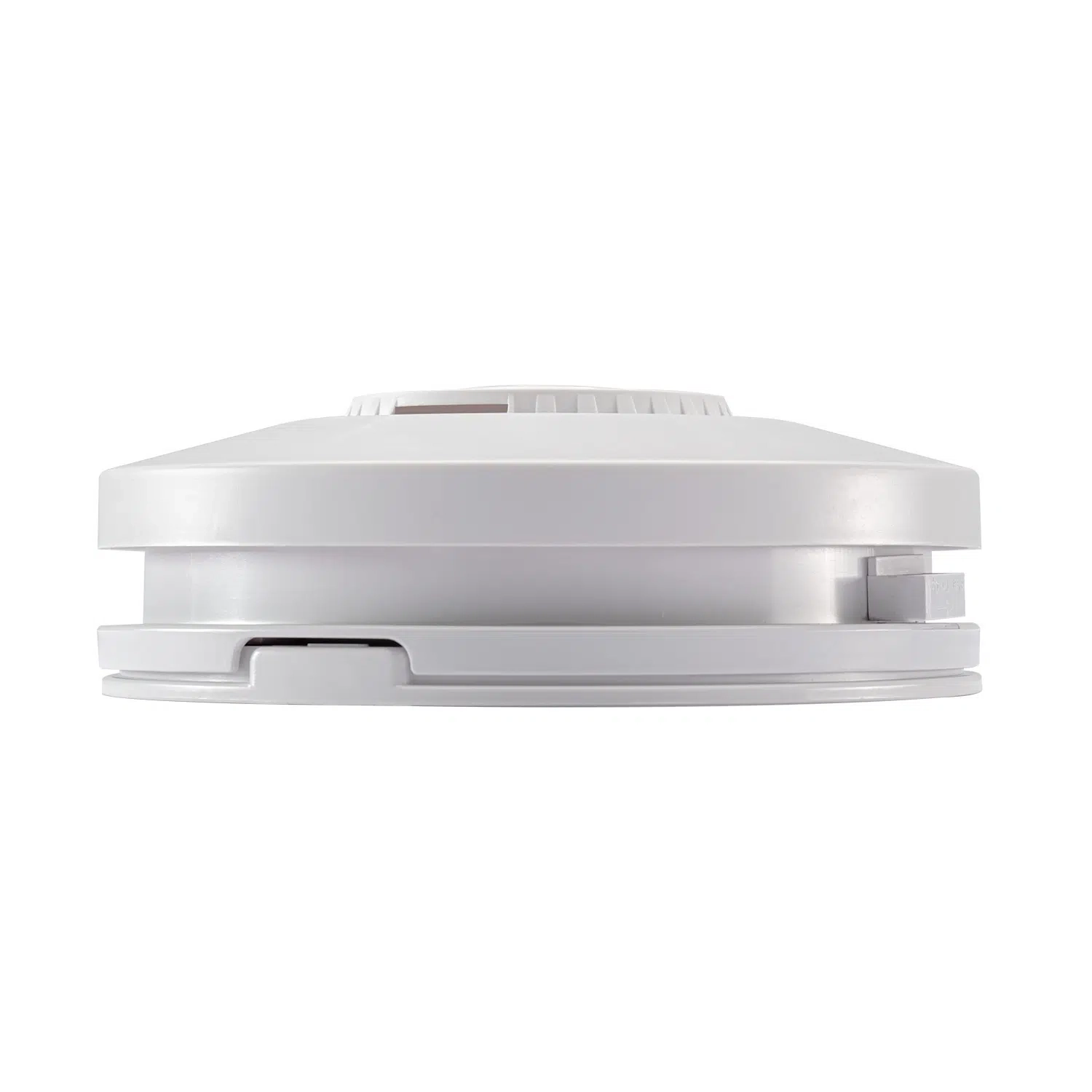

Red Smoke Alarms R240 Photoelectric Smoke Alarm 240v/9v Interconnectable

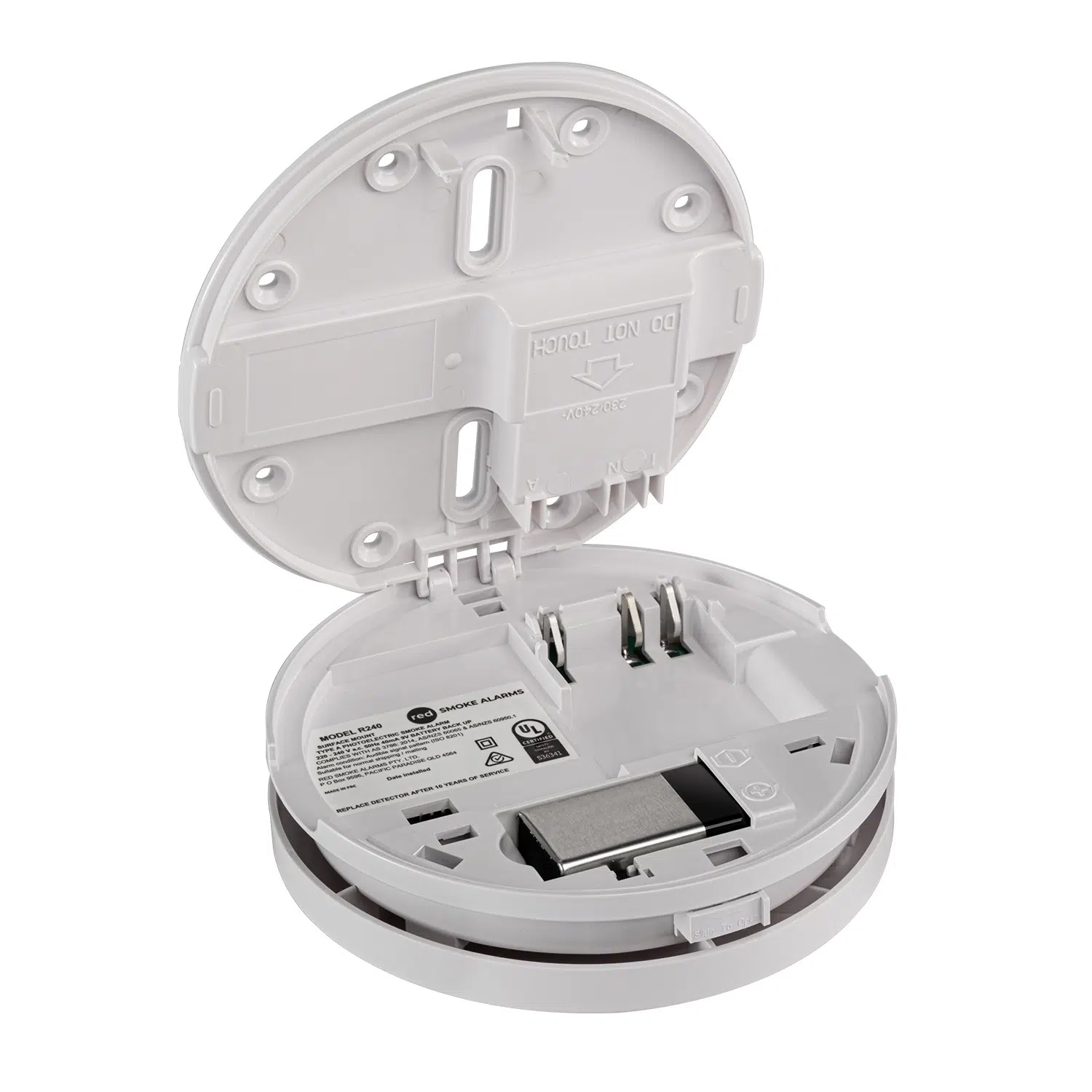

- A photoelectric, 240v (hard wired) smoke alarm with a rechargeable lithium battery back up.

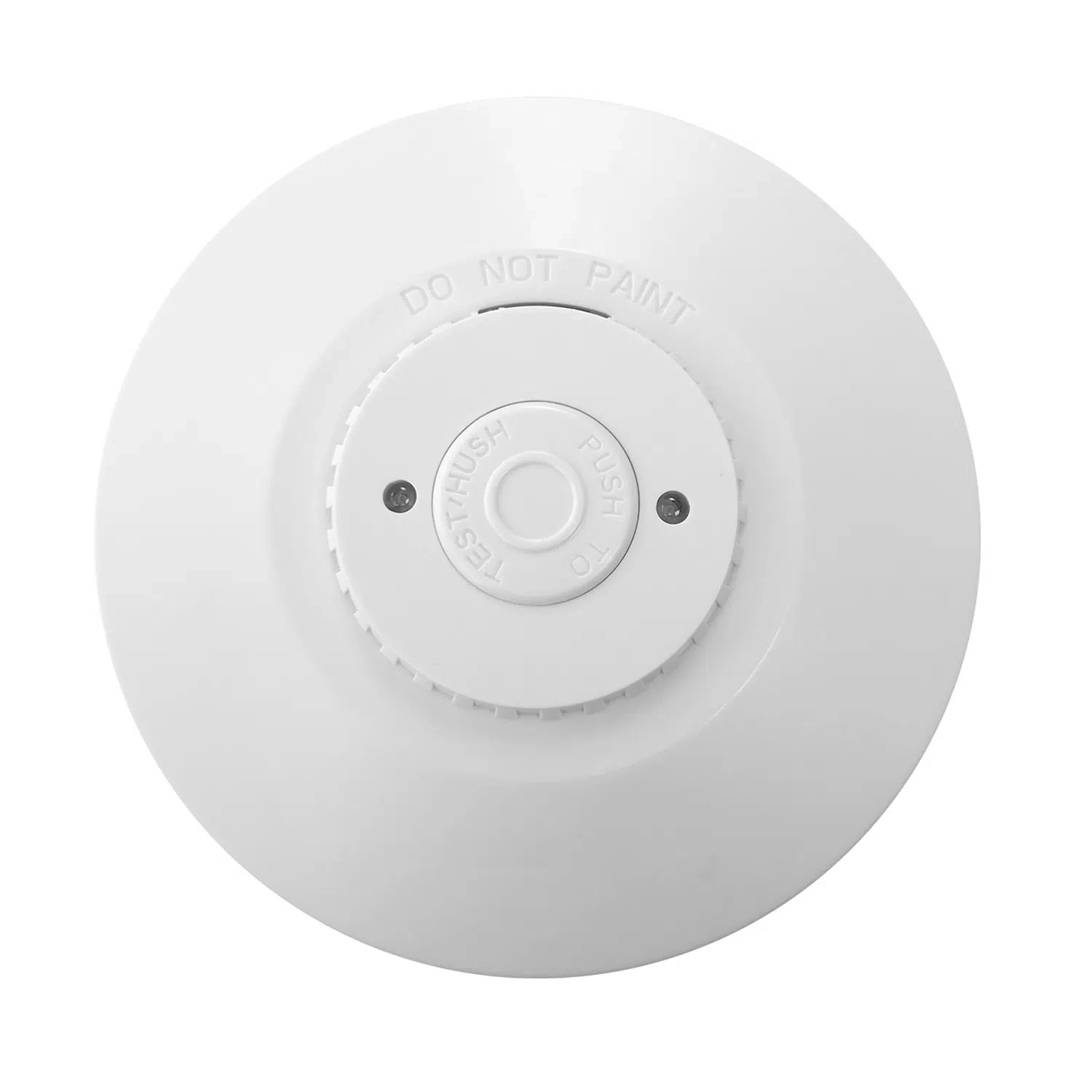

- Interconnectable with up to 40 Red smoke alarms and includes a test/hush button and visual indicators.
- Can be wirelessly interconnected with the addition of the Red RF wireless base.
- The R240RC smoke alarm is approved and certified to meet AS3786:2014 and is fully compliant to meet the Queensland 2022 smoke alarm legislation.
- The new QLD smoke alarm legislation starts on January 1st 2022, All properties leased or sold in Queensland must be fitted with photoelectric, interconnected smoke alarms in all bedrooms of the home as well as hallways or between areas containing bedrooms and on each storey of the dwelling.
- When the Red RF wireless base is used with this alarm, the Red Smoke Alarm Controller can connect wirelessly to this smoke alarm.
- This product must be installed by a licensed electrician.
- Clipsal Equivalent 755RLPSMA4,Brooks Equivalent EIB3016,PSA Equivalent LIF5800RL/2
- For Full Specifications Click on the Brochure Link Under The Main Image.
- This product must be installed by a licensed electrician.
(rer240rc)
Red Smoke Alarms R240RC Spec Sheet
| Key Information | |
| Product Brand | Red Smoke Alarms |
| Product or Component | Smoke Detector |
| Device Application | Early detection of smouldering fires and open fires |
| Electronic Sensor Type | Photo-electric sensor |
| Colour | White (RAL 9003) |
| Quantity per Set | Set of 1 |
| Type of Packing | Carton |
| Mains | 220...240 V AC |
| Rated Supply Voltage | 220...240 V AC |
| Backup Type | Battery |
| Battery Life | 10 Year |
| Output Voltage Limits | Interconnection : 6.5...20V, Low battery at 6.9... 7.5V |
| Detection Type | Smoke |
| Function Available | Hush Function, Self-test of smoke detection, Local alarm |
| Control Type | Button for test/hush function |
| Number of Devices | Up to 40 pieces |
| Response Time | Approx. 8s |
| Noise Level | 85 dB at 3m minimum |
| Time delay range | 10 min for hush |
| Local Signal | Sound: Alarm, Sound: Signal, Visual: 1 LED (red) for warning and low battery, Visual: 1 LED (green) for ON status |
| Type of Installation | Indoor |
| Device Mounting | Surface |
| Mounting Support | Wall-mount, Ceiling |
| Fixing Mode | By screws |
| Diameter | 140 mm |
| Height | 55 mm |
| Environment | |
| Ambient Air Temperature for Operation | 0...45°C |
| Relative Humidity | 5...95% |
| Standards | AS 3786 : 2014 / amdt 2:2018 |
