Model No: RWB2

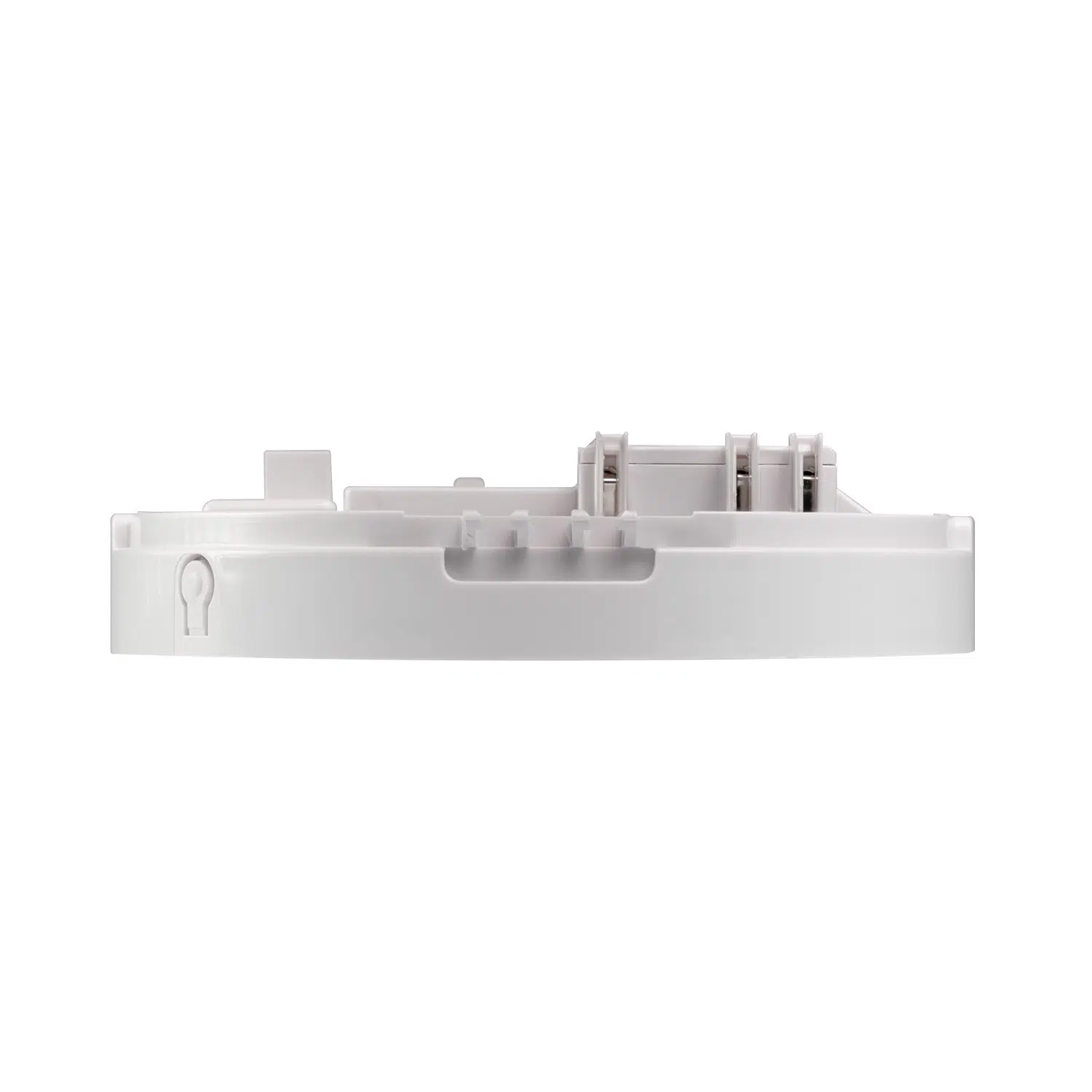

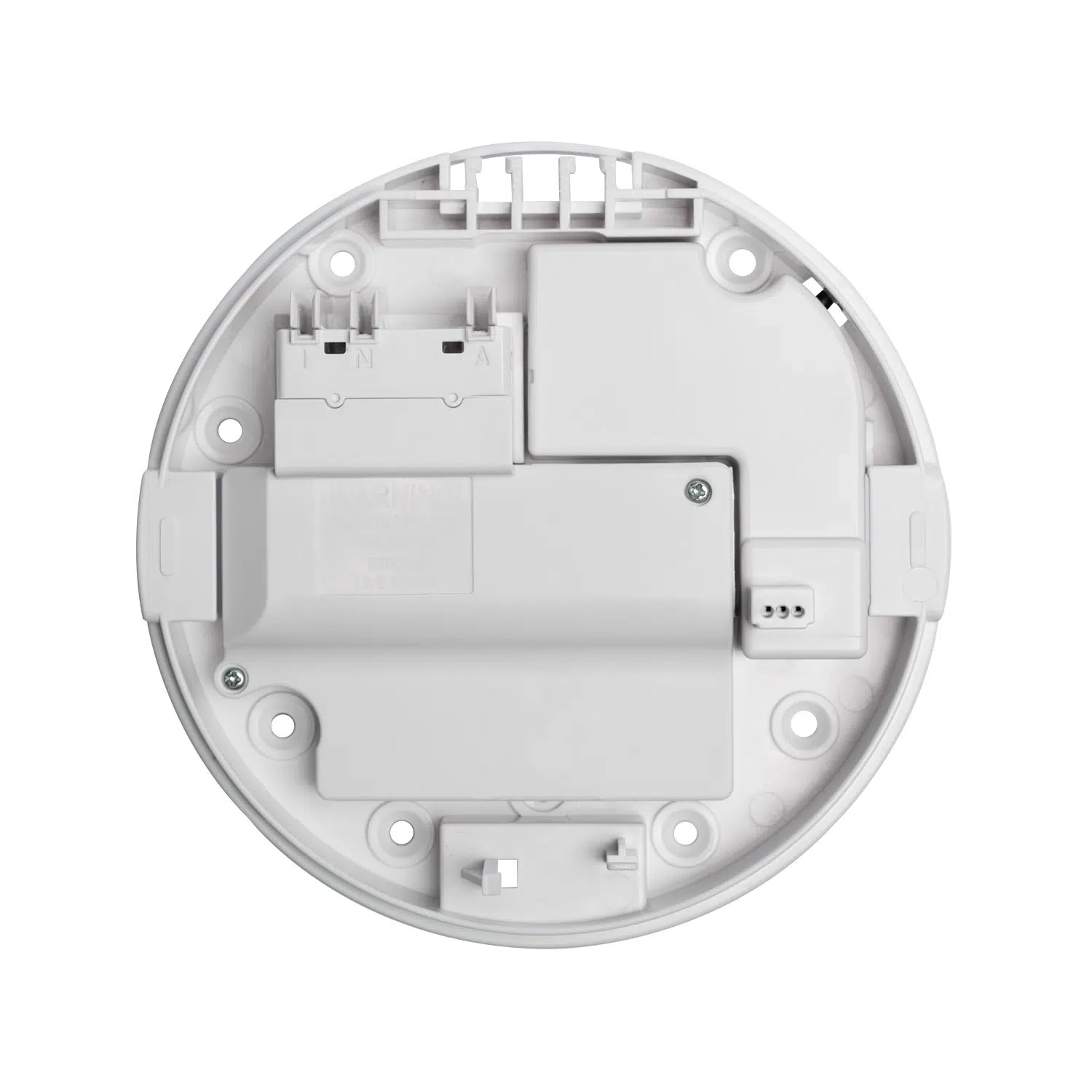

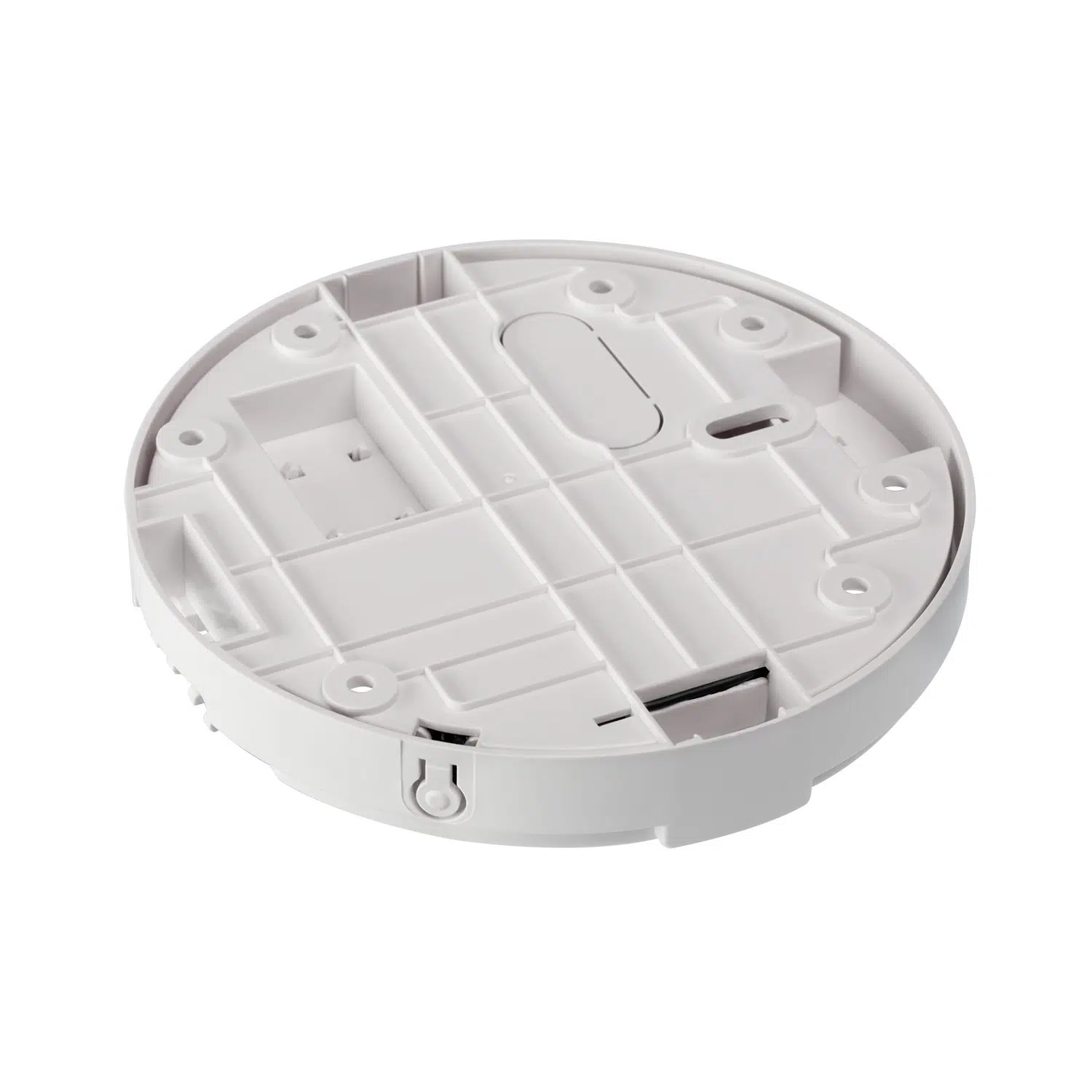

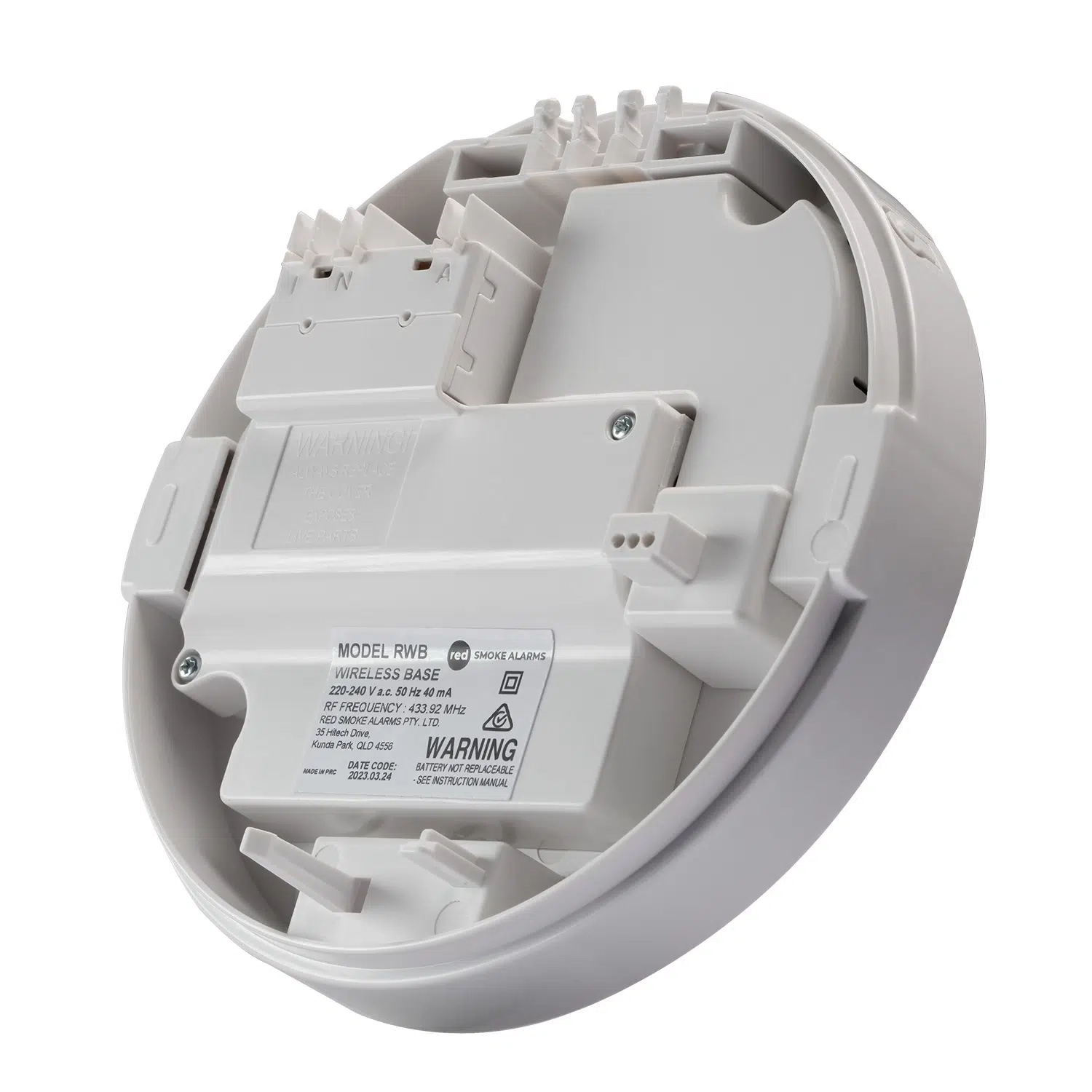

- A wireless mounting base for the R240 and R240RC 240v smoke alarms to allow them to interconnect wirelessly with Red 240v smoke alarms and the Red R10RF 10 year wireless smoke alarm. This wireless base also connects with the Red Smoke Alarm Controller.
- Clipsal Equivalent 755RFB2, Brooks Equivalent EIB168RC,PSA Equivalent LIFPE10
- For Full Specifications Click on the Brochure Link Under The Main Image.
(rerwb2)
Red Smoke Alarms RWB Spec Sheet

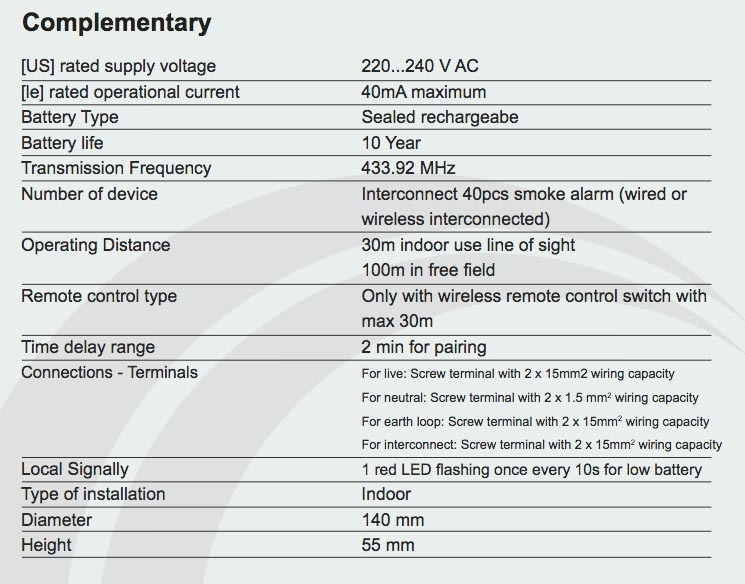

| Key Information | |
| Product Brand | Red Smoke Alarms |
| Product or Component | Mounting Base |
| Device Application | Mounting |
| Colour | White (RAL 9003) |
| Quantity per Set | Set of 1 |
| Type of Packing | Carton |
| Mains | 220...240 V AC |
| [le] rated operational current | 40mA maximum |
| Battery Type | Sealed rechargeable |
| Battery life | 10 Year |
| Transmission Frequency | 433.92 MHz |
| Number of device | Interconnect 40pcs smoke alarm (wired or wireless interconnected) |
| Operating Distance | 30m indoor use line of sight, 100m in free field |
| Remote control type | Only with wireless remote control switch with max 30m |
| Time delay range | 2 min for pairing |
| Local Signally | 1 red LED flashing once every 10s for low battery |
| Type of installation | Indoor |
| Diameter | 140 mm |
| Height | 55 mm |
| Connection Terminals | |
| Live Connection | Screw terminal with 2 x 1.5mm² wiring capacity |
| Neutral Connection | Screw terminal with 2 x 1.5 mm² wiring capacity |
| Earth Loop Connection | Screw terminal with 2 x 1.5mm² wiring capacity |
| Interconnect Connection | Screw terminal with 2 x 1.5mm² wiring capacity |
| Environment | |
| Ambient air temperature for operation | 0...45°C |
| Relative humidity | 5...95% |
| Standards | AS 4268 |
| Offer Sustainability | |
| Sustainable offer status | Not Green Premium Product |
| Disclaimer | |
| The information provided in this table contains general descriptions and/or technical characteristics of the performance of the products contained herein. This table is not intended as a substitute for and is not to be used for determining suitability of reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither Red Smoke Alarms PTY. LTD nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. | |
| SKU | rerwb2 |
| Brand | Red Smoke |
