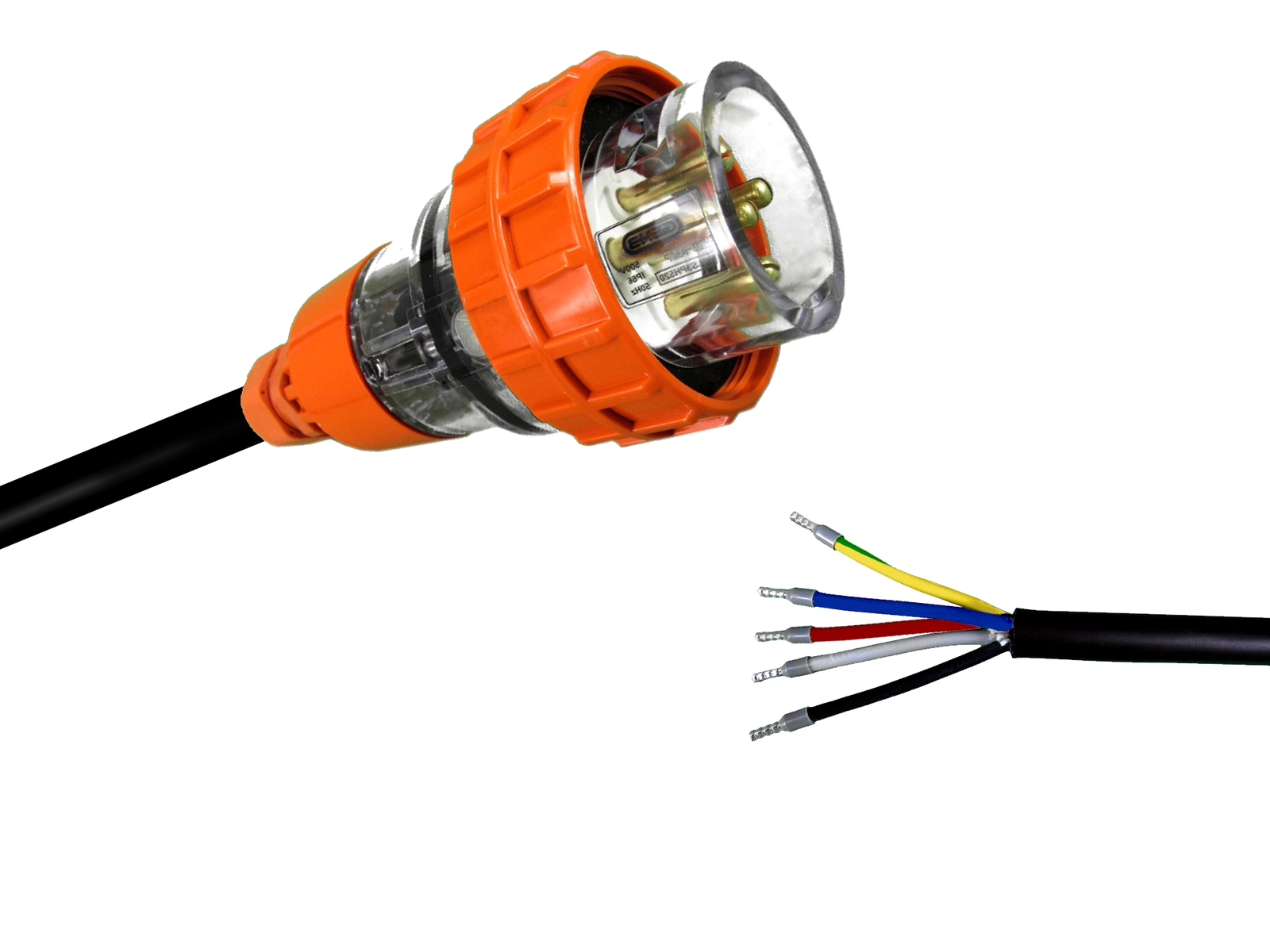

Appliance Lead 5 Pin 20 Amp Round Three Phase Straight Plug 1m Lead with Bootlace Pins

• Appliance Lead 5 Pin 20 Amp Round Three Phase
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose. Installation and tagging of this product must be performed by a legally qualified person.
• This Appliance Lead is not an extension lead. It is designed to be permanently connected to an appliance, for example to replace the existing attached lead.
• All Electrotraders Appliance Leads are assembled and tested in-house by our Licenced Electricians.

Lead Time:

• Standard: 1-2 days dispatch from order. We will advise if outside of this range.
• Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select expedited shipping at the checkout.

Choose your configuration:

• Plug: Industrial Australian Electrical Extension Plug in Straight or Angled form with lock ring.
• Lead length: A variety of lengths available from 1 metre up to 20 metres.
• Wire ends: Bootlace Pins terminate all wires. Some leads also offer Tinned Copper Tube Crimp Lugs with a range of hold (stud) sizes - availability of this option varies by product. Heat shrink is used to protect the lug and wire.
• Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and lead. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

• All GEN3 Industrial Switch Gear and power board module bases are Series 56 style IP66 Rated sourced from high quality reputable Australian brands, and are compatible with all leading Australian switch gear.
• All GEN3 plastics are PCA18 virgin grade (No regrind)
• All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
• All Brass internal components are greater than 85% copper.
• All GEN3 products have Australian/NZ Approval Certificates.
• All GEN3 products are interchangeable with other major brands.

Cable:

• Cable Specifications: Five Core: Cross-Sectional Area (CSA) = 2.5mm2, Nominal Sheath Thickness (NST) = 2.1mm, Max DC Resistance @20degC = 8.21 ohms/KM, Nominal Diameter (NOD) = 13.5 mm, Amperage rating = 27 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 306 Kg/Km
• Leads use Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV
