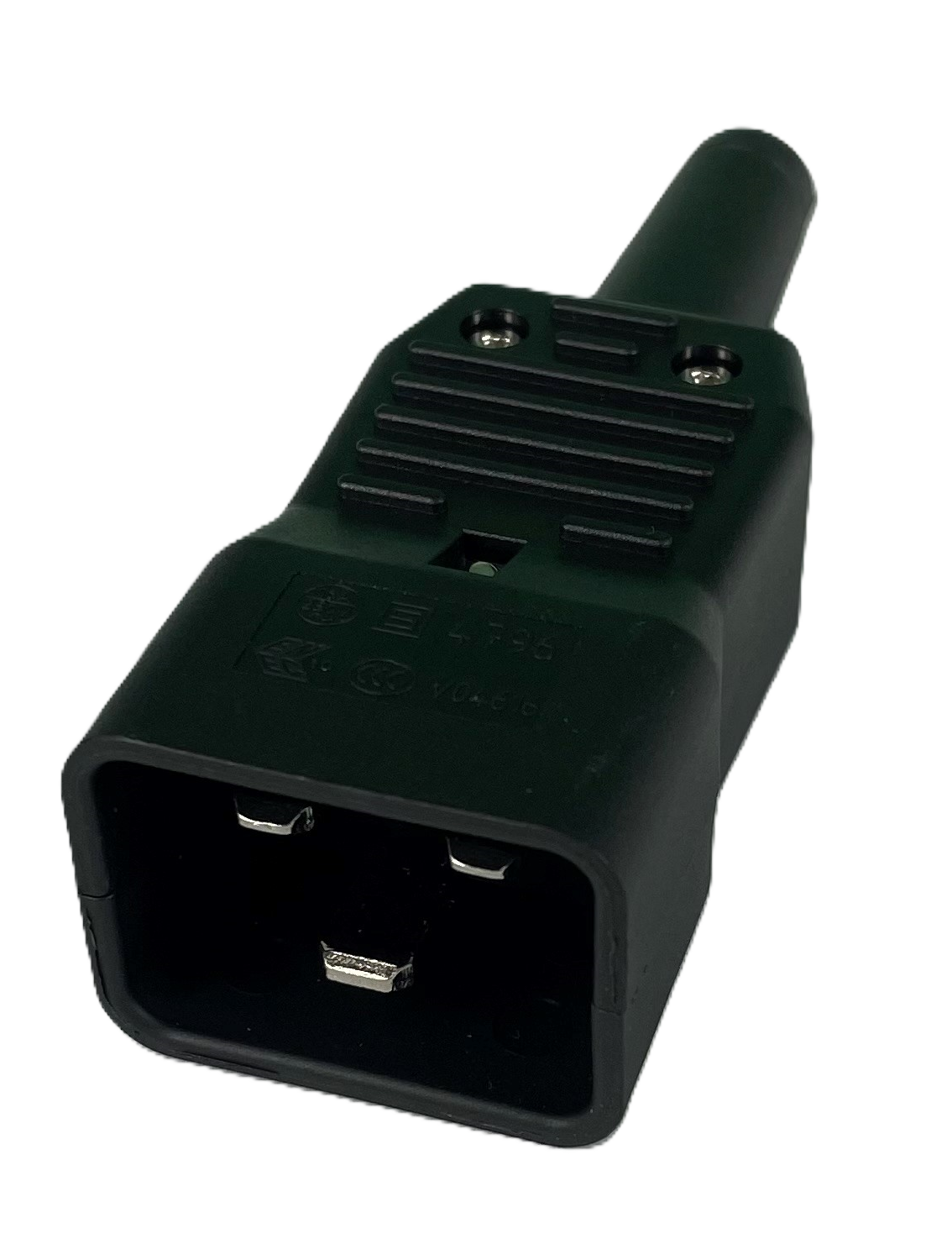

C20 IEC Appliance Outlet | Rewirable Plug | Connector

AC Power Connector

SKU: fasextpluC20

$25.00



Schurter 4796.0000, IEC Appliance Outlet C20,

Black, for 3 x 1.5m sqr/14AWG

Maximum wire size 10/8mm Type

Features
Panel Mount : Snap-in Mounting from Front Side
Appliance Inlet C20 Plug acc to IEC 60320-1
Screw On Mounting
70 °C pin Temperature


Characteristics
UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 16A, Protection Class I
Other Pin versions available on request
Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1

Schurter Part Number    4796.0000
Rated Voltage    250V
Rated Current    16A (CE) 20A (UL/CSA)
Operating Temperature    -25°C to 70°C


Mounting
Wire Screw Mount/Outlet
Material    Thermoplastic, black, UL 94V-0
Termination Style    C20/Screw Terminal
Weight    40g
Protection Class    From front side IP30 acc. to IEC 60529
Isolation    2kV
VDE/UL/CSA/CE/ROHS    Yes



(fasextpluC20)

SKU fasextpluC20
