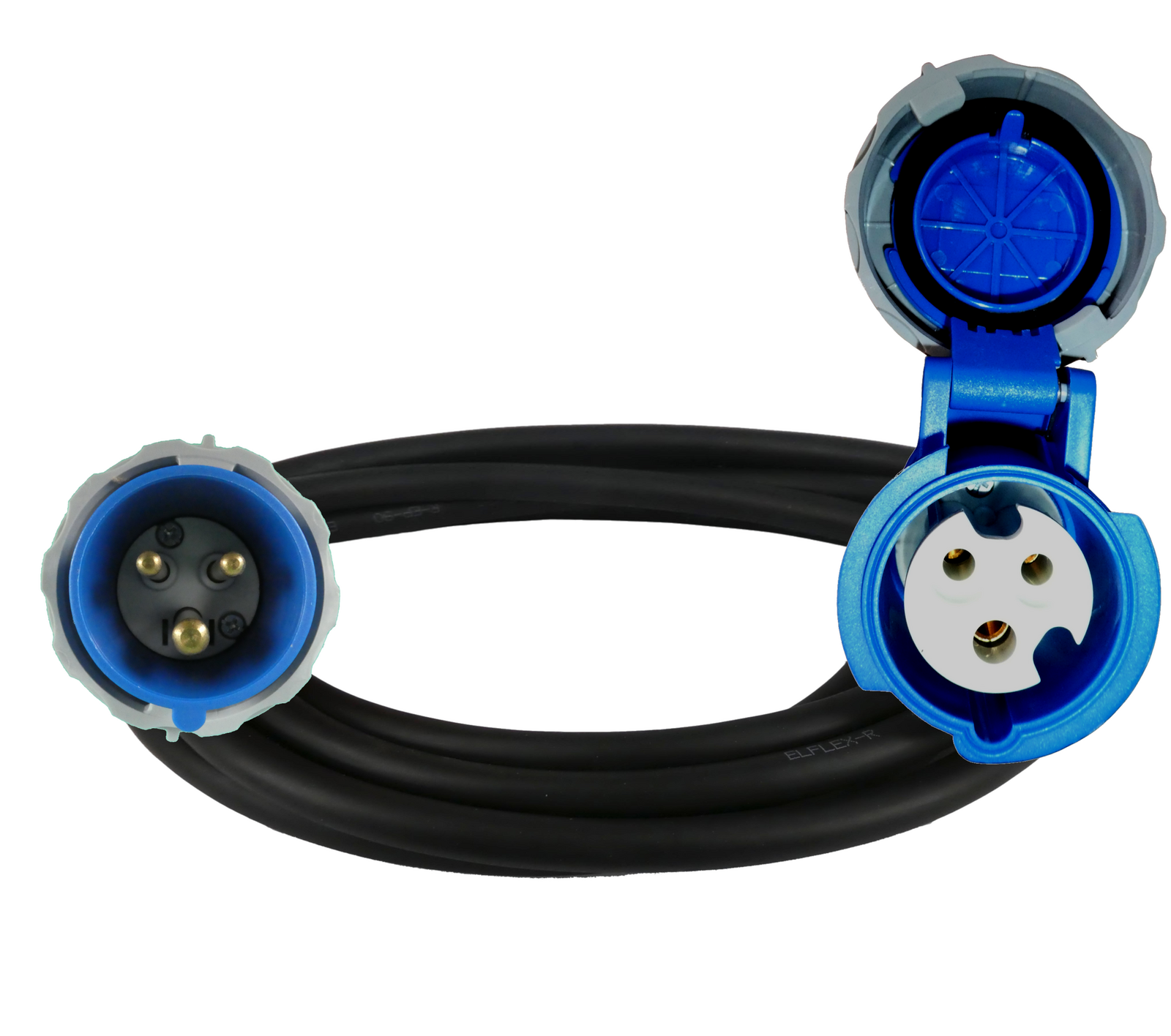

Extension Lead 3 Pin CEE Form (IEC 60309) 16 Amp Straight Plug 5 metre Standard Duty 1.5mm cable 240V

High quality extension lead:

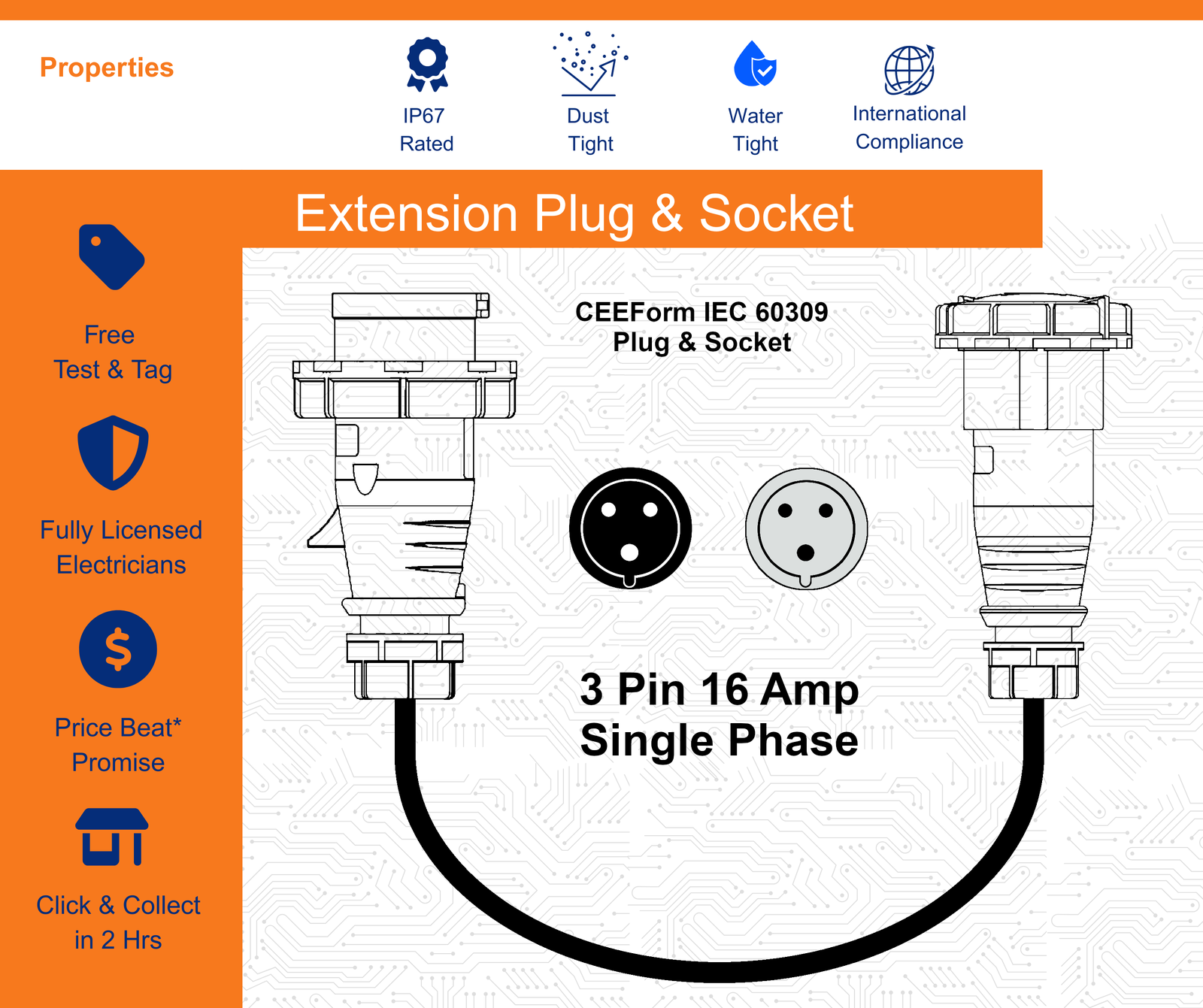

• Extension Lead 3 Pin CEE Form (IEC 60309) 16 Amp 240V
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders CEE Form Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.
• This product is not compatible with Australian Outlets. We do have IEC to Australian adapters available for purchase separately.

Choose your configuration:

• Available in lengths (m): 5, 10, 15, 20, 25, 30, 40, 50, 60 (Note: configurations may not offer all length options due to component availability or electrical characteristics)
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20°C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
• Standard: CSA 1.5mm2, NST 1.6mm, MaxR 13.7, NOD 10.3mm, Amps 20
• Heavy Duty: CSA 2.5mm2, NST 1.8mm, MaxR 8.21, NOD 12mm, Amps 27
• Extra Heavy Duty: CSA 4mm2, NST 1.9mm, MaxR 5.09, NOD 13.4mm, Amps 36
• Cable used to assemble some leads may occasionally vary based on availability at time of ordering. Electrical properties will be equal or better, with some physical attributes differing slightly (eg nominal diameter being larger by 10-15%).

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

• All Plugs and Sockets are source from high quality reputable Australian brands, comply with European Standards (IEC 60309) and are IP67 rated.

Cable Properties:

• Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV
