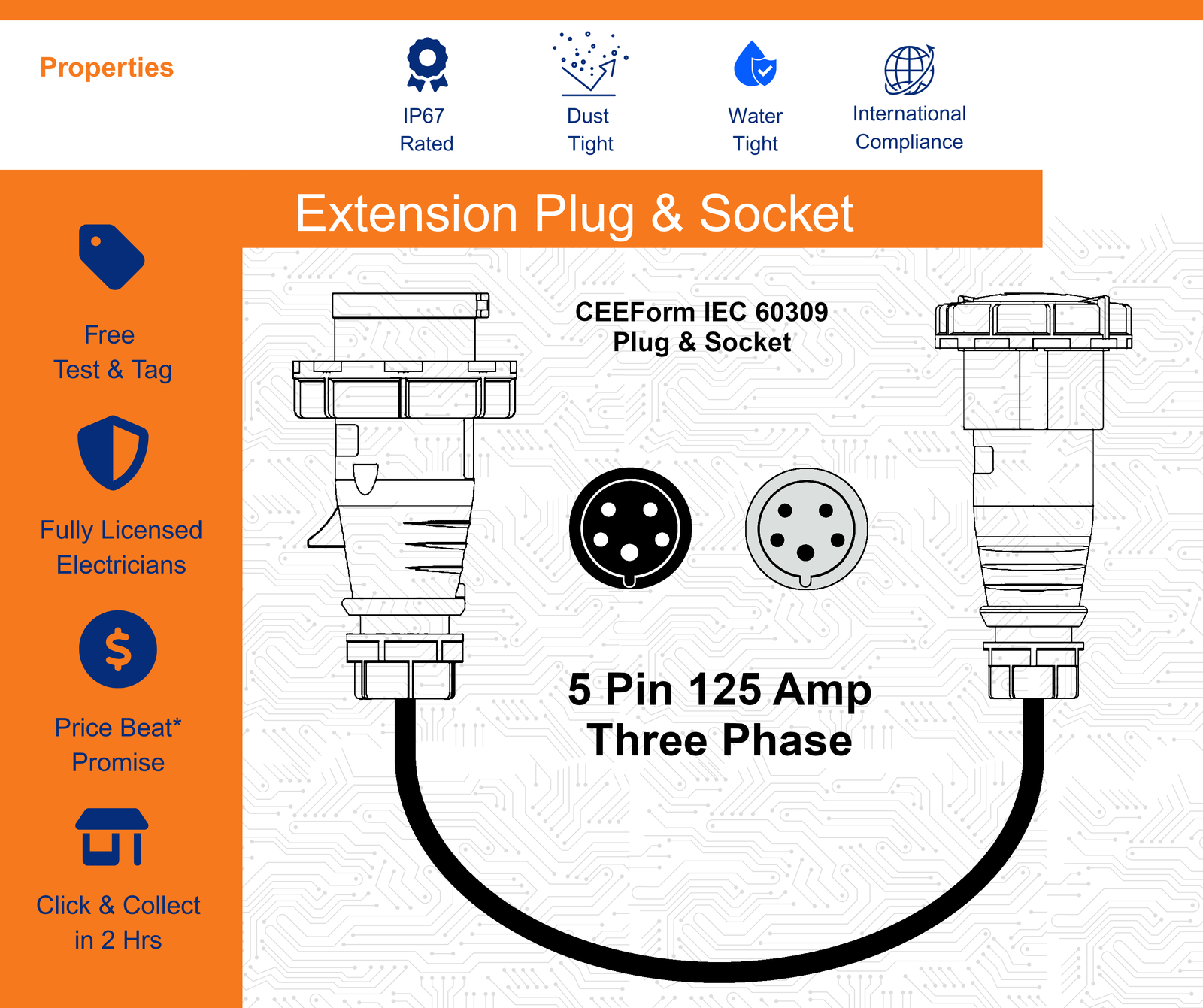

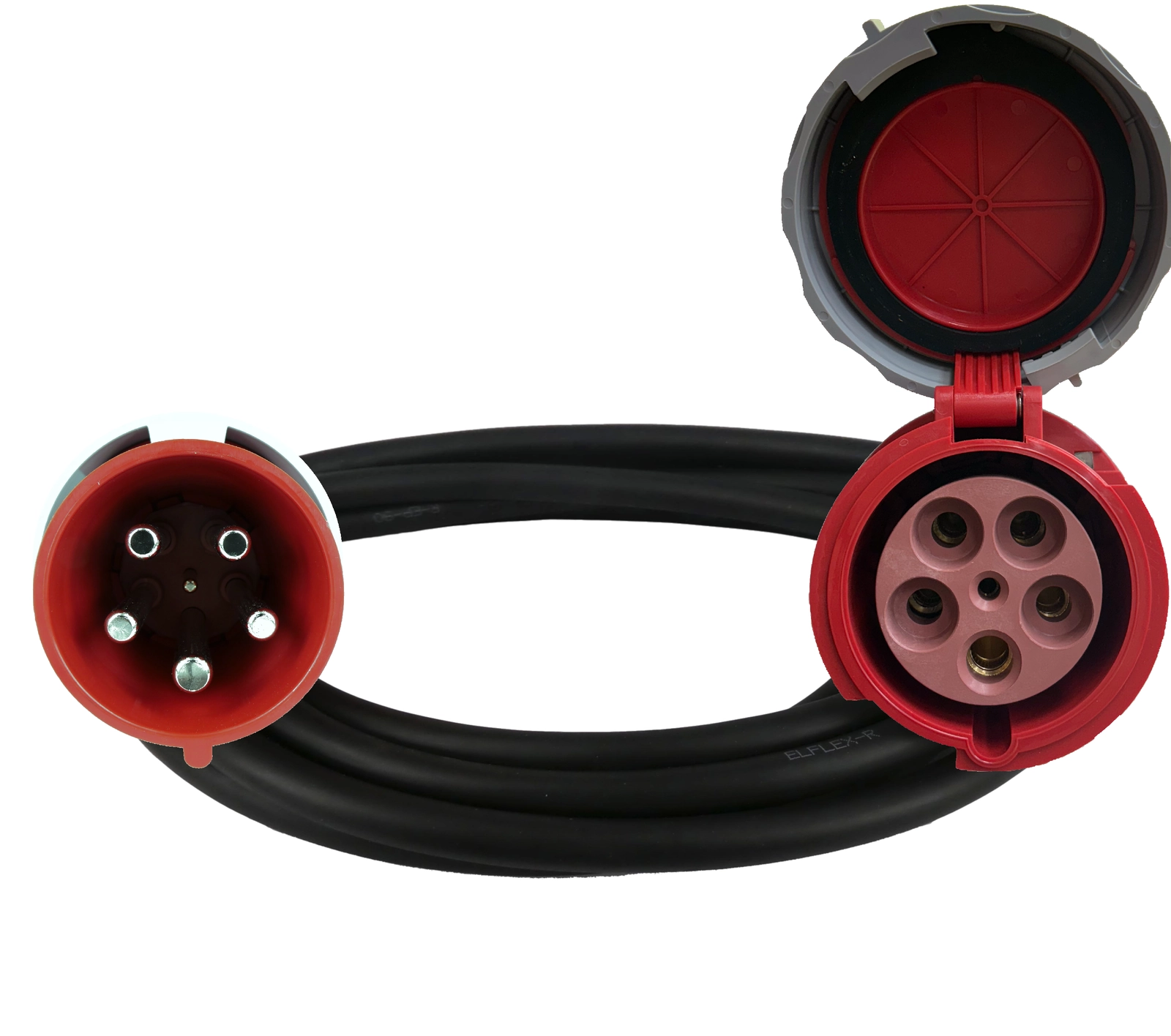

Extension Lead 5 Pin CEE Form (IEC 60309) 125 Amp Straight Plug 5 metre Standard Duty 35mm cable 415V

Available for hire:

This product is available for purchase or hire. To purchase, select your configuration and add it to your cart. For hiring inquiries, click Have a Question and we'll provide more details.

High quality extension lead:

• Extension Lead 5 Pin CEE Form (IEC 60309) 125 Amp 415V
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders CEE Form Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.
• This product is not compatible with Australian Outlets. We do have IEC to Australian adapters available for purchase separately.

Choose your configuration:

• Available in lengths (m): 5, 10, 15, 20, 25, 30, 40 (Note: configurations may not offer all length options due to component availability or electrical characteristics)
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20°C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
  • Standard: CSA 35mm2, NST 4.6mm, MaxR 0.565, NOD 38.1mm, Amps 144
  • Heavy Duty: Not Available
  • Extra Heavy Duty: Not Available

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

• All Plugs and Sockets are source from high quality reputable Australian brands, comply with European Standards (IEC 60309) and are IP67 rated.

Cable Properties:

• Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV
