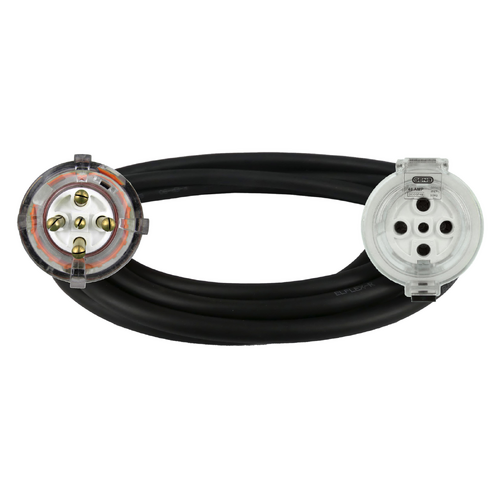

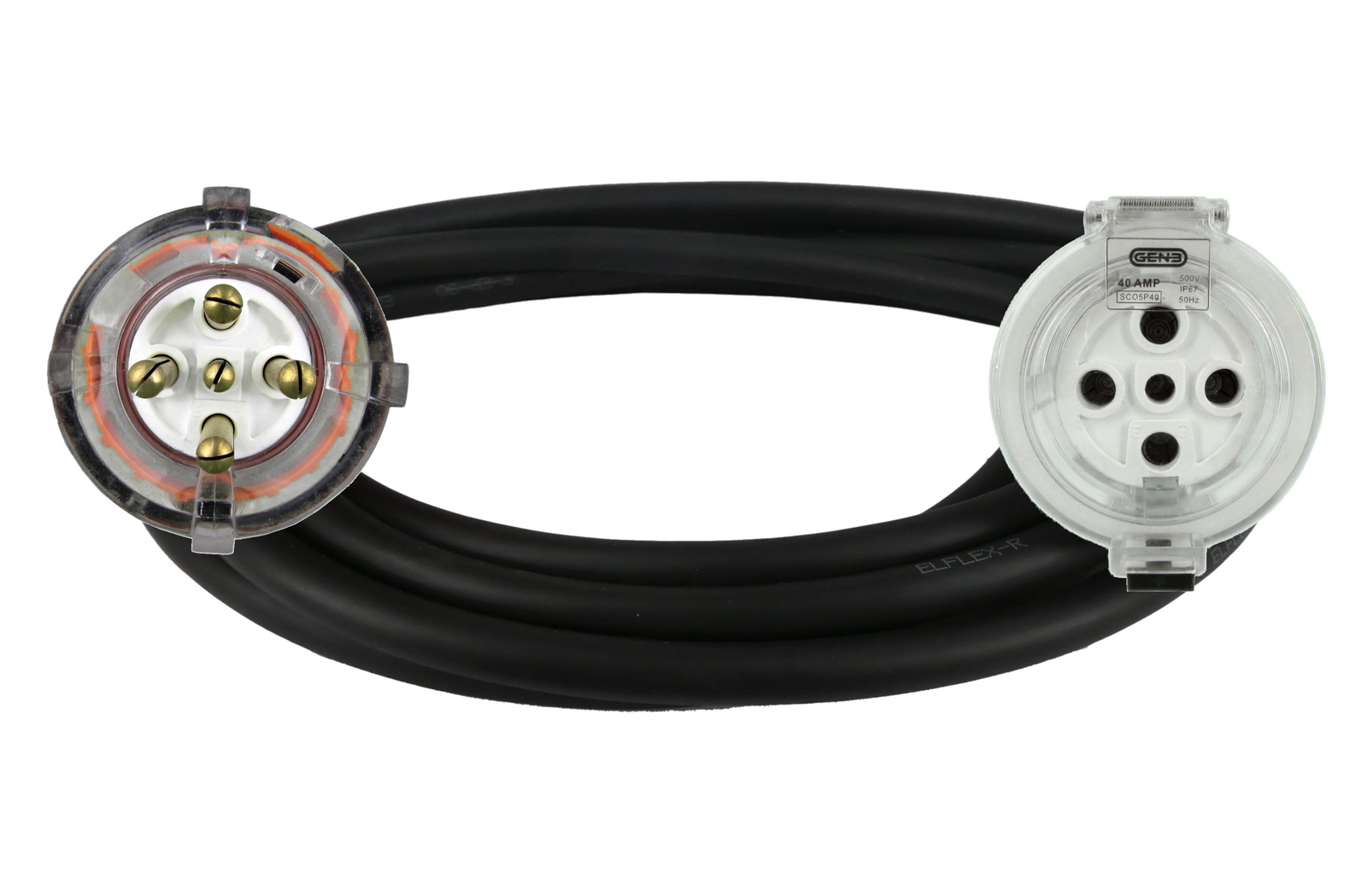

Extension Lead 5 Pin 40 Amp Round Pin Straight Plug 5 metre Standard Duty 6mm cable 415V

SKU: ext5p40ars06.0g05m

Buy In Bulk & Save!
Buy 4 to 9:	Pay $223.00
Buy 10 or more:	Pay $211.00

Have a Question

Description
Specifications

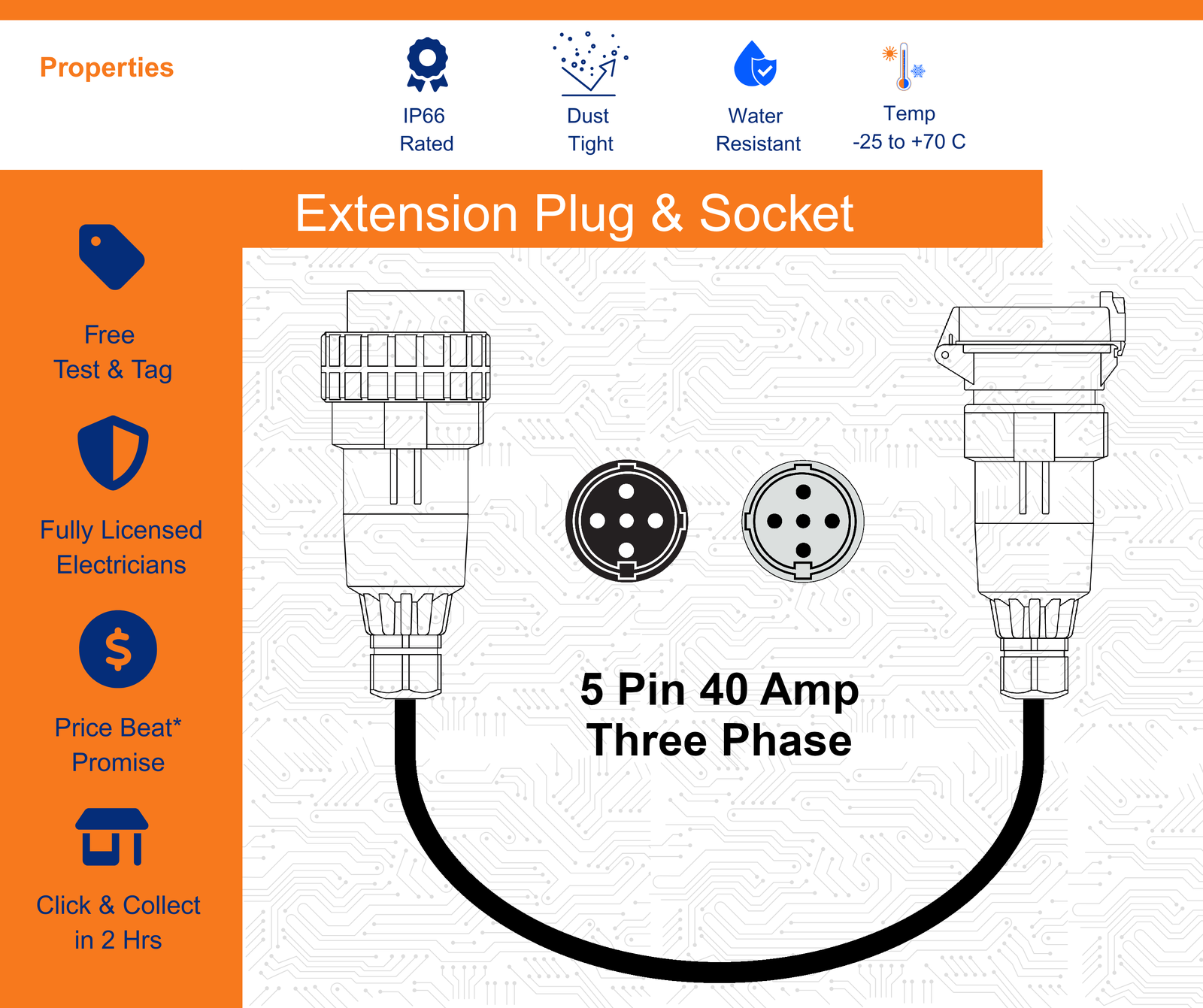

Extension Lead 5 Pin Round 40 Amp 415V
Available in lengths of 5m, 10m, 15m, 20m, 25m, 30m, 40m, 50m and 60m long.
24 month warranty on all products. Warranty does not extend to misuse.
All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.
All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.
Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20??C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
- Standard: CSA 6mm2, NST 2.5mm, MaxR 3.39, NOD 18.5mm, Amps 46, Weight 620 Kg/Km
- Heavy Duty: CSA 10mm2, NST 3.6mm, MaxR 1.95, NOD 22.3mm, Amps 66, Weight 1025 Kg/Km
- Extra Heavy Duty: Not available
Rated Voltage 0.6/1kV
Typically used at events & temporary cabling, fairgrounds, sporting venues, for generators / motors / compressors / construction applications including portable equipment such as concrete cutting.
Please consult with a qualified electrician or engineer about the suitability of this cable for your intended purpose.
Prior to ordering your product check and confirm the compatibility of the plug and socket on the lead. ie 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you are unsure contact us and we will be happy to help. This will avoid the inconvenience and extra cost should the incorrect lead be purchased.
