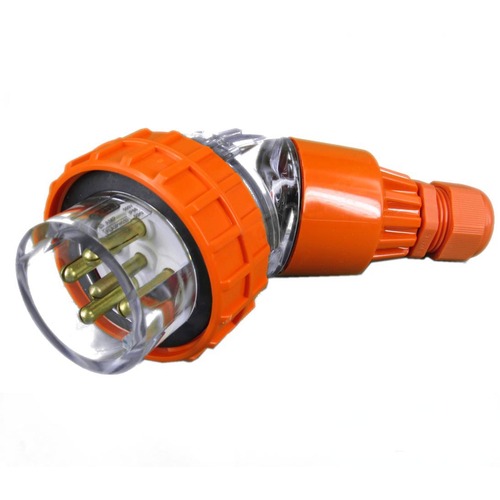

GEN3 5 Pin 10 Amp Industrial Angled Extension Plug PLA3PH510

SKU: genextpla510

$28.60

10 AMP 3 Phase 5 Pin Round Angled Extension Plug Top 10A Industrial Electrical GEN3



  • GEN3
  • Item Code: PLA3PH510
  • 10 AMP 3 Phase 5 Pin Round Angled Extension Plug Top
  • 45 Degree Angled Model.
  • 500 Volt
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
  • All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • All GEN3 plug tops have compression glands for quick cable termination.
  • All GEN3 switch sockets have mounting templates for fast and easy installation.
  • GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius
  • Colour is Orange

(genextpla510)

General Specifications
SKU genextpla510
Supplier Code PLA3PH510
Style Series 56 Style
Rating IP66
Electrical Specifications
Volts 500V
Amps 10Amp
Pins 5 Pin
Pin Type Round
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.
Dimensions & Packaging
Length (mm) 126.1
Diameter (mm) 79.8
Box Length (cm) 20.5
Box Width (cm) 9
Box Height (cm) 10
Box Qty 1
Box Weight (kg) 0.40
Carton Qty 24
Compliance & Approvals
Approvals Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility Products are interchangeable with other major brands.
SKU genextpla510
Manfacturer Part Number PLA3PH510
Colour Orange
Brand GEN3
