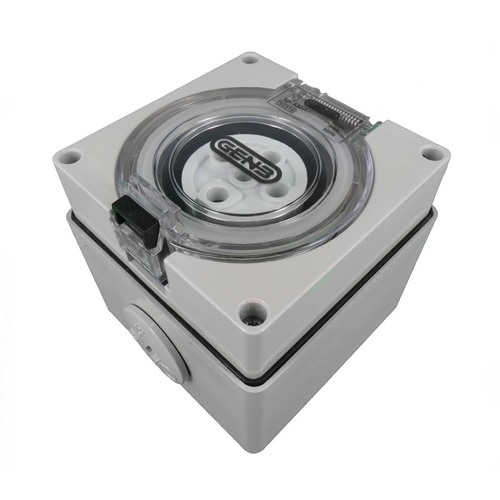

5 Pin 10 Amp Surface Socket Outlet SC510

SKU: gensursoc510

5 Pin 10 Amp Surface Socket Outlet SC510

$31.73 (ex-GST)

$34.90 (inc-GST)

  • Only 4 Left!

GEN3 10 AMP Three Phase 5 Pin Single Weatherproof Surface Socket Outlet

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


  • GEN3
  • Item Code: SC510
  • Three Phase 5 Pin 10 Amp Fixed Socket Outlet
  • 500 Volt
  • Dimensions: 100mm x 100mm x 90mm
  • Mounting Templates Provided.
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
  • All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • All GEN3 plug tops have compression glands for quick cable termination.
  • All GEN3 switch sockets have mounting templates for fast and easy installation.
  • GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius
  • Colour is Grey

(gensursoc510)

General Specifications
SKU gensursoc510
Supplier Code SC510
Style Series 56 Style
Rating IP66
Electrical Specifications
Volts 500V
Amps 10Amp
Pins 5 Pin
Pin Type Round
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.
Dimensions & Packaging
Length (mm) 108.9
Width (mm) 101
Depth (mm) 100.5
Box Length (cm) 12
Box Width (cm) 11
Box Height (cm) 12
Box Qty 1
Box Weight (kg) 0.58
Carton Qty 24
Compliance & Approvals
Approvals Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility Products are interchangeable with other major brands.
SKU gensursoc510
Manfacturer Part Number SC510
Colour Grey
Brand GEN3
