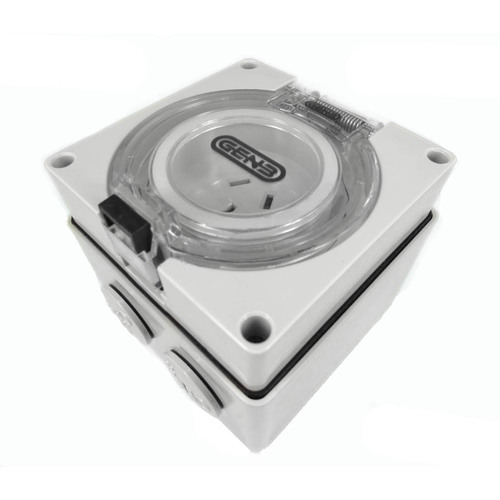

3 Pin 15 Amp Surface Socket Outlet Flat SC315

SKU: gensursoc315

$23.60

15 AMP Single Phase 3 Pin Flat Industrial Weatherproof Surface Socket Outlet GEN3



  • GEN3
  • Item Code: SC315
  • 15 AMP Single Phase 3 Pin Flat Single Weatherproof Fixed Socket Outlet
  • 250 Volt
  • Dimensions: 100mm x 100mm x 90mm
  • Mounting Template Provided
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
  • All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius
  • Colour is Grey

(gensursoc315)

General Specifications
SKU gensursoc315
Supplier Code SC315
Style Series 56 Style
Rating IP66
Electrical Specifications
Volts 500V
Amps 15Amp
Pins 3 Pin
Pin Type Round
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.
Dimensions & Packaging
Length (mm) 108.9
Width (mm) 101
Depth (mm) 100.5
Box Length (cm) 12
Box Width (cm) 11
Box Height (cm) 12
Box Qty 1
Box Weight (kg) 0.50
Carton Qty 24
Compliance & Approvals
Approvals Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility Products are interchangeable with other major brands.
SKU gensursoc315
Manfacturer Part Number SC315
Colour Grey
Brand GEN3
