GEN3 4 Pin 20A Industrial Electrical Extension Plug PLS3PH420
SKU: genextplu420
GEN3 4 Pin 20A Industrial Electrical Extension Plug PLS3PH420
$18.91 (ex-GST)
$20.80 (inc-GST)
- 40 In Stock
20 AMP 3 Phase 4 Pin Extension Plug Top 20A Industrial Electrical IP66 GEN3
- GEN3
- Item Code: PLS3PH420
- 20 AMP 3 Phase 4 Pin Round Extension Plug Top
- 500 Volt
- All GEN3 Industrial Switch Gear is IP66 Rated
- All GEN3 plastics are PCA18 virgin grade (No regrind)
- All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
- All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
- All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
- All GEN3 products are interchangeable with other major brands.
- All GEN3 plug tops have compression glands for quick cable termination.
- All GEN3 switch sockets have mounting templates for fast and easy installation.
- GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius
- Colour is Orange
(genextplu420)
| General Specifications | |
| SKU | genextplu420 |
| Supplier Code | PLS3PH420 |
| Style | Series 56 Style |
| Rating | IP66 |
| Electrical Specifications | |
| Volts | 500V |
| Amps | 20Amp |
| Pins | 4 Pin |
| Pin Type | Round |
| Material Specifications | |
| Plastics | PCA18 virgin grade (No regrind) |
| Springs and Screw | 316 Stainless Steel |
| Brass Components | Brass internal components are greater than 85% copper. |
| Dimensions & Packaging | |

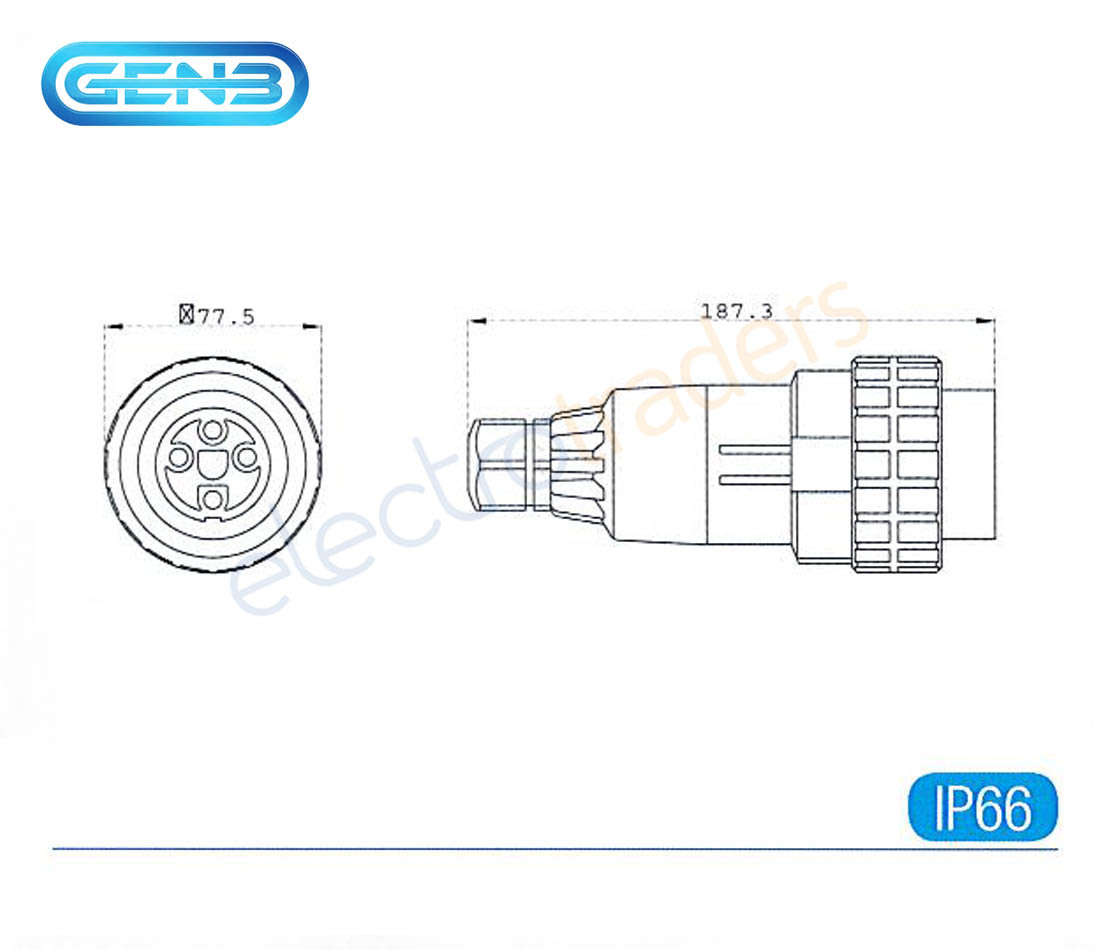

| Length (mm) | 187.3 |
| Diameter (mm) | 77.5 |
| Box Length (cm) | 20.5 |
| Box Width (cm) | 9 |
| Box Height (cm) | 10 |
| Box Qty | 1 |
| Box Weight (kg) | 0.43 |
| Carton Qty | 24 |
| Compliance & Approvals | |
| Approvals | Products have Australian/NZ Approval Certificates. |
| Compatibility | |
| Compatibility | Products are interchangeable with other major brands. |
| SKU | genextplu420 |
| Manfacturer Part Number | PLS3PH420 |
| Colour | Orange |
| Brand | GEN3 |
| Type | Three Phase Plug |
