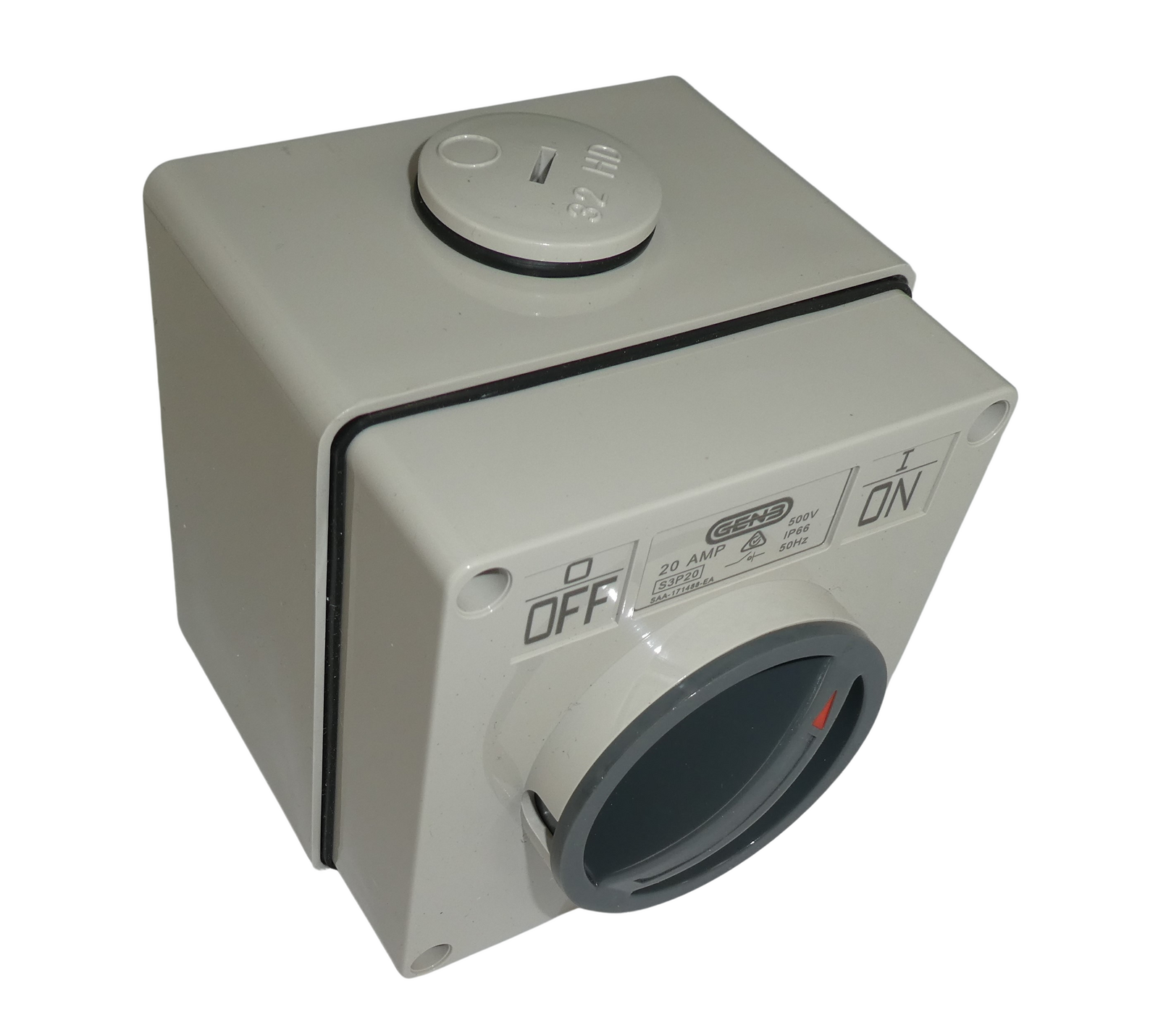

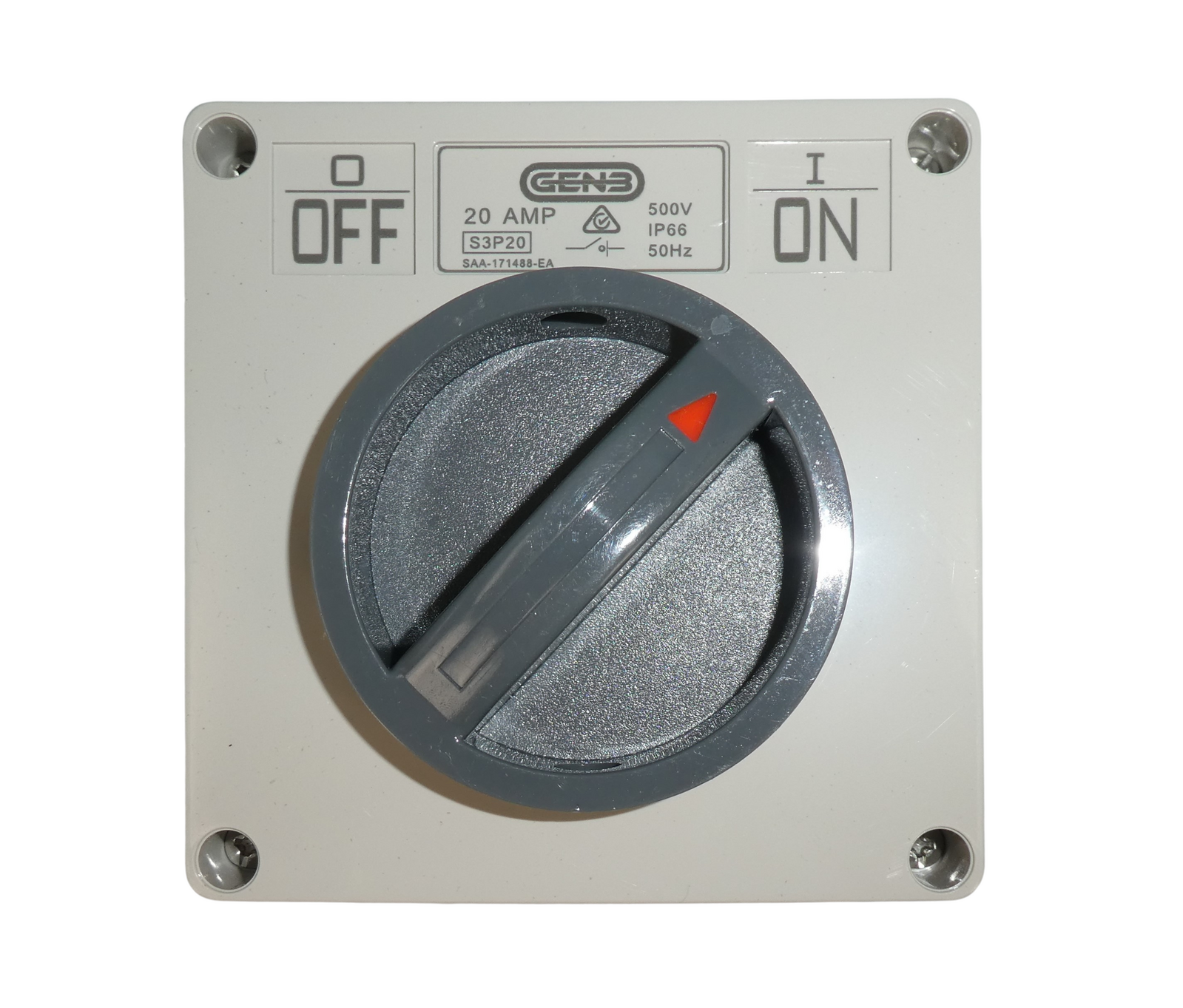

GEN3 S3P20 20 AMP 3 Pole Weatherproof Surface Switch IP66

SKU: genswi320

$24.50

GEN3 20 AMP 3 Pole Weatherproof Surface Switch IP66



  • GEN3
  • Product Code S3P20
  • 20 AMP 3 Pole Weatherproof Surface Switch IP66
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
  • All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius

(genswi320)

General Specifications
SKU genswi320
Supplier Code S3P20
Style Series 56 Style
Rating IP66
Electrical Specifications
Volts 500V
Amps 20Amp
Poles 3 Pole
Min Cable Size (mm) 2.5
Max Cable Size (mm) 6
Dimensions
Length (mm) 108.9
Width (mm) 101
Depth (mm) 108.9
Packaging Details
Box Length (cm) 11.7
Box Width (cm) 10.8
Box Height (cm) 11.5
Box Qty 1
Box Weight (kg) 0.58
Carton Qty 24
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.
Compliance and Approvals
Approvals Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility Products are interchangeable with other major brands.
SKU genswi320
Manfacturer Part Number S3P20
Colour Grey
Brand GEN3
