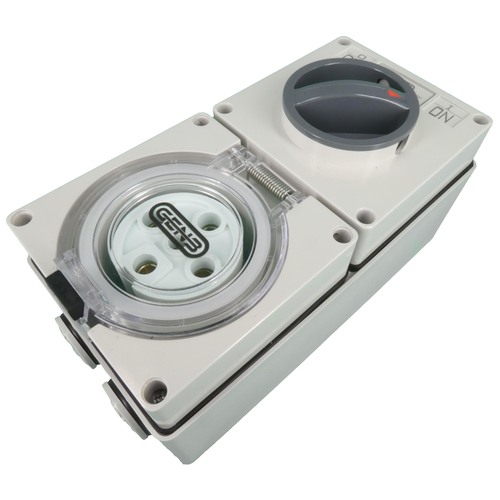

GEN3 CO3PH532 32A 3 Phase 5 Pin Switched Socket Combination Outlet

SKU: genswisoc532

$64.80

32 Amp 3 Phase 5 Pin Switched Socket Combination Outlet GEN3



  • GEN3
  • Item Code: CO3PH532
  • 32 Amp 3 Phase 5 Pin Round Switched Socket Combination
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper.
  • All GEN3 products have Australian/NZ Approval Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • All GEN3 switch sockets have mounting templates for fast and easy installation.
  • GEN3 Operating Temperature range -25 °C to +70°C
  • Entry Points Top 1 x 32, Bottom 2 x 25, Back Cutouts 1 x 32, 1 x 25mm

(genswisoc532)

General Specifications
SKU genswisoc532
Supplier Code CO3PH532
Style Series 56 Style
Rating IP66
Electrical Specifications
Volts 500V
Amps 32Amp
Pins 5 Pin
Pin Type Round
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.
Dimensions & Packaging
Length (mm) 205.9
Width (mm) 101
Depth (mm) 109.6
Box Length (cm) 21.5
Box Width (cm) 11
Box Height (cm) 12
Box Qty 1
Box Weight (kg) 1.16
Carton Qty 12
Compliance & Approvals
Approvals Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility Products are interchangeable with other major brands.
SKU genswisoc532
Manfacturer Part Number CO3PH532
Colour Grey
Brand GEN3
