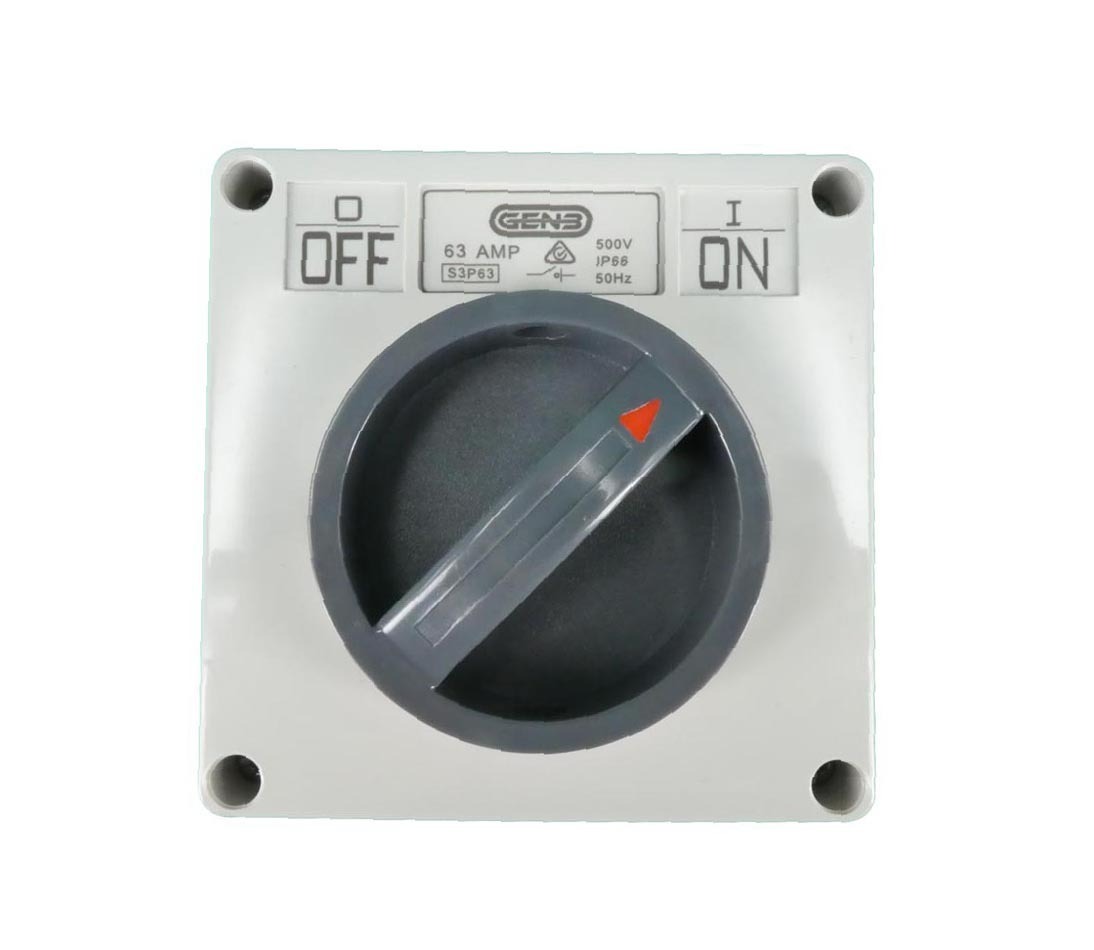

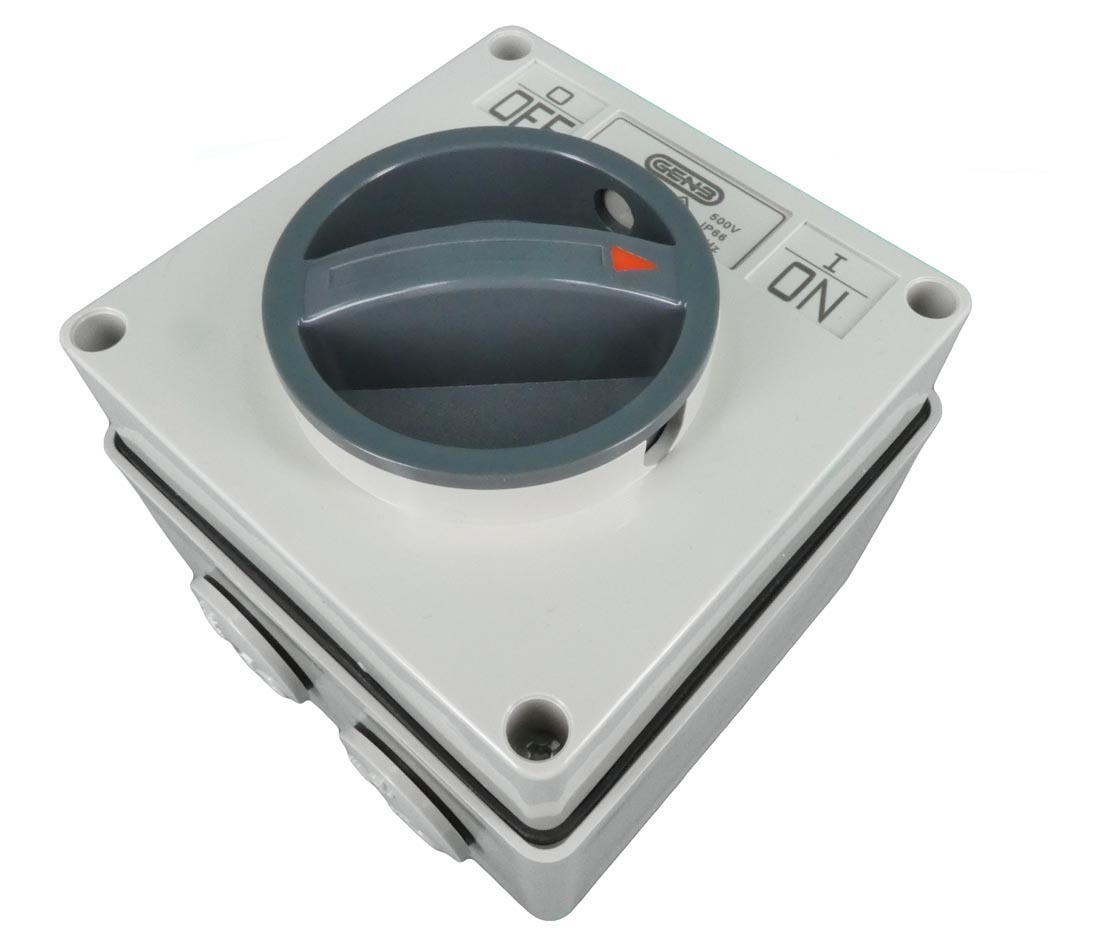

GEN3 S3P63 63 AMP 3 Pole Weatherproof Surface Switch IP66

SKU: genswi363

$48.30

GEN3 63 AMP 3 Pole Weatherproof Surface Switch IP66



  • GEN3 63 AMP 3 Pole Weatherproof Surface Switch IP66
  • Item Code: S3P63
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
  • All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius

(genswi363)

General Specifications
SKU genswi363
Supplier Code S3P63
Style Series 56 Style
Rating IP66
Electrical Specifications
Volts 500V
Amps 63Amp
Poles 3 Pole
Min Cable Size (mm) 10
Max Cable Size (mm) 16

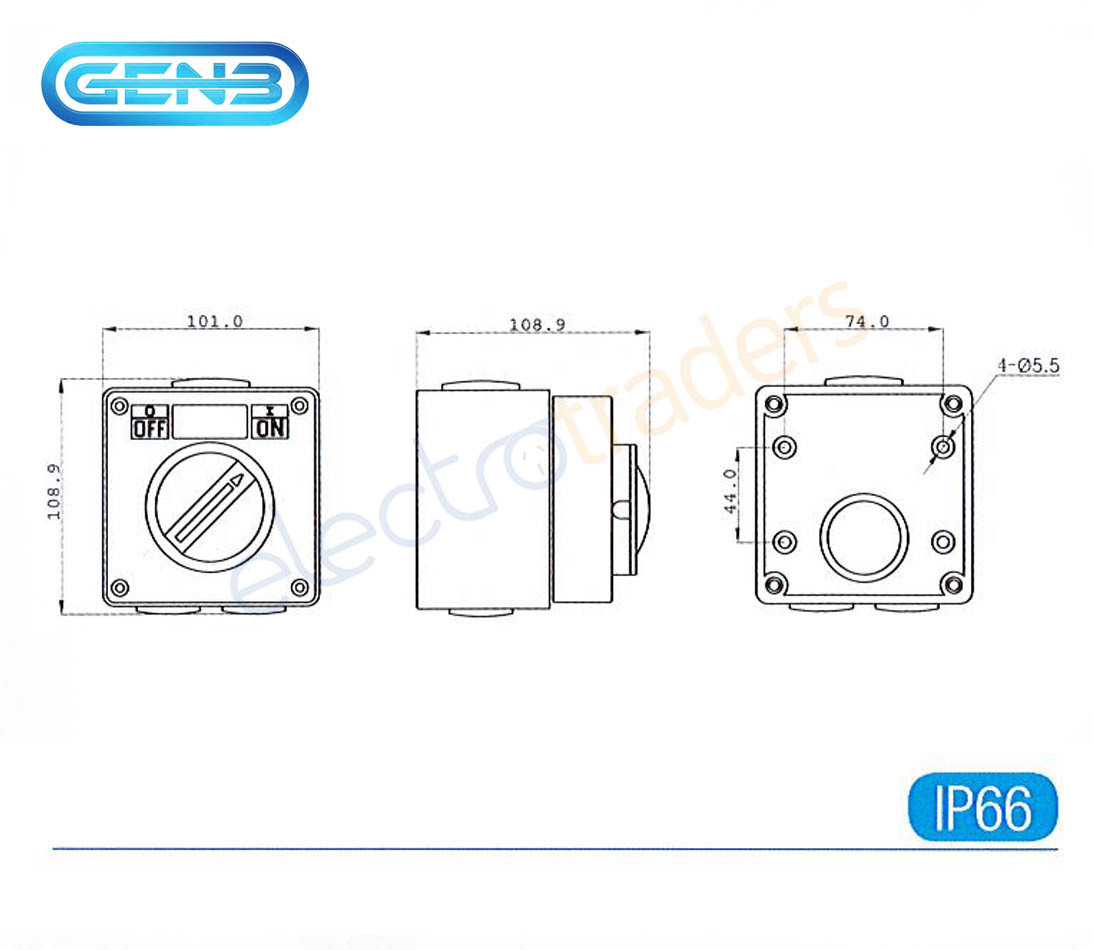

Dimensions
Length (mm) 108.9
Width (mm) 101
Depth (mm) 108.9
Packaging Details
Box Length (cm) 11.7
Box Width (cm) 10.8
Box Height (cm) 11.5
Box Qty 1
Box Weight (kg) 0.60
Carton Qty 24
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.
Compliance and Approvals
Approvals Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility Products are interchangeable with other major brands.
SKU genswi363
Manfacturer Part Number S3P63
Colour Grey
Brand GEN3
