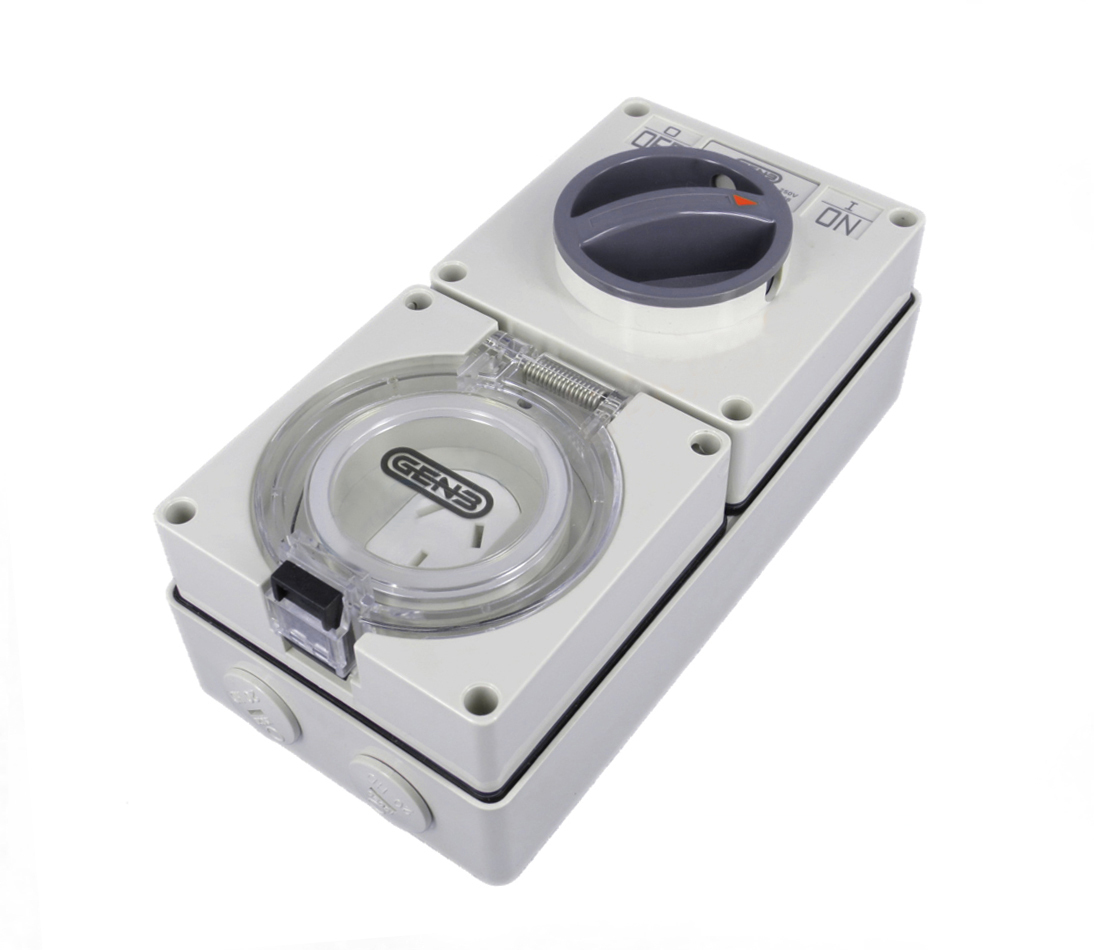

GEN3 CO1PH10 Special Double-Pole version 10A Single Phase 3 Flat Pin Industrial Switch Outlet Grey

SKU: genswisoc310dp

$47.40

10 Amp Single Phase Double Pole 3 Pin Flat Switched Socket Combination Outlet GEN3



  • GEN3
  • Item Code: CO1PH10 - Double Pole version exclusive to Electrotraders
  • Our licensed electricians convert this switched socket to double pole for use where extra protection is needed (Caravans, Recreational Vehicles, Camper Trailers, Domestic, Commercial or Construction Applications
  • 10 Amp Single Phase 3 Pin Flat Switched Socket Combination Outlet
  • 250V
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper.
  • All GEN3 products have Australian/NZ Approval Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • All GEN3 switch sockets have mounting templates for fast and easy installation.
  • GEN3 Operating Temperature range -25 °C to +70 °C

(genswisoc310dp)

General Specifications
SKU genswisoc310dp
Supplier Code CO1PH10
Style Series 56 Style
Rating IP66
Electrical Specifications
Poles Double
Volts 250V
Amps 10Amp
Pins 3 Pin
Pin Type Flat
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.

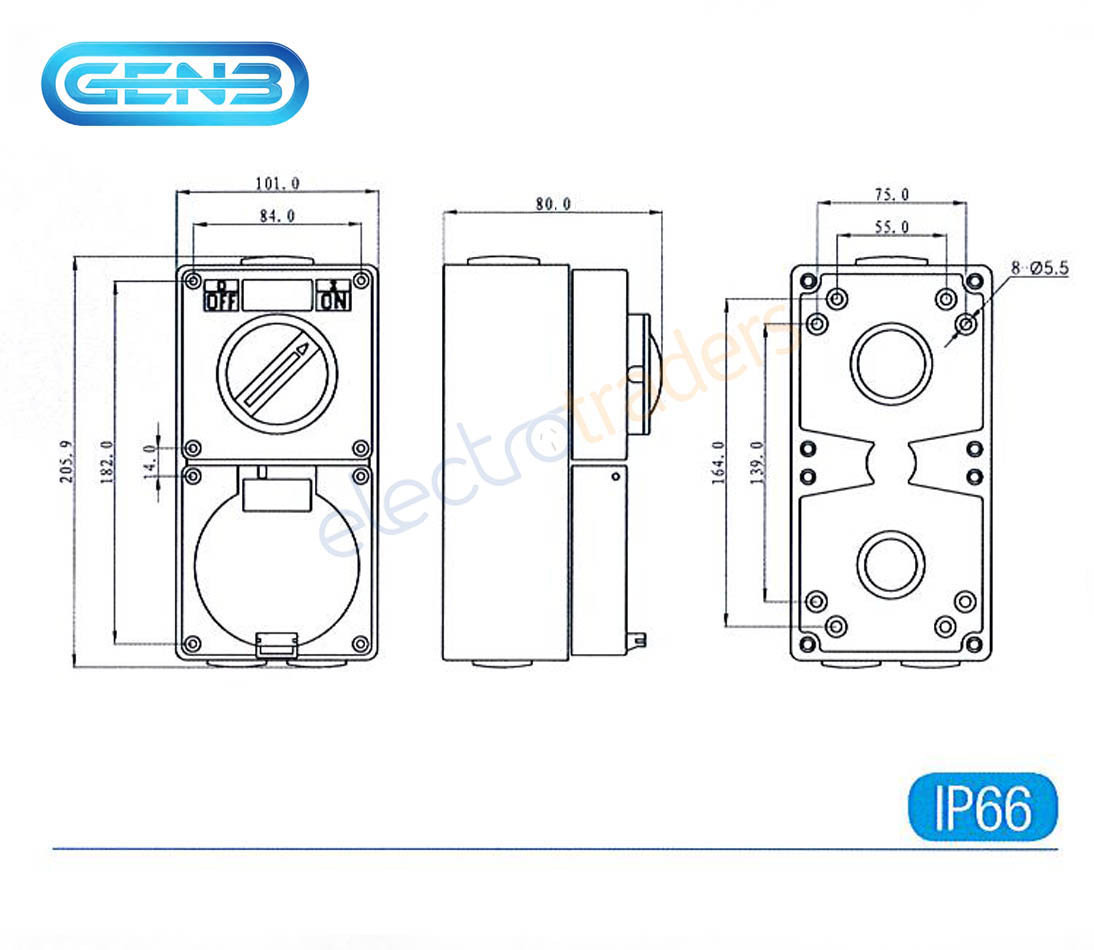

Dimensions & Packaging
Length (mm) 205.9
Width (mm) 101
Depth (mm) 109.6
Box Length (cm) 21.5
Box Width (cm) 11
Box Height (cm) 9.5
Box Qty 1
Box Weight (kg) 0.84
Carton Qty 18
Compliance & Approvals
Approvals Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility Products are interchangeable with other major brands.
SKU genswisoc310dp
Colour Grey
Brand GEN3
