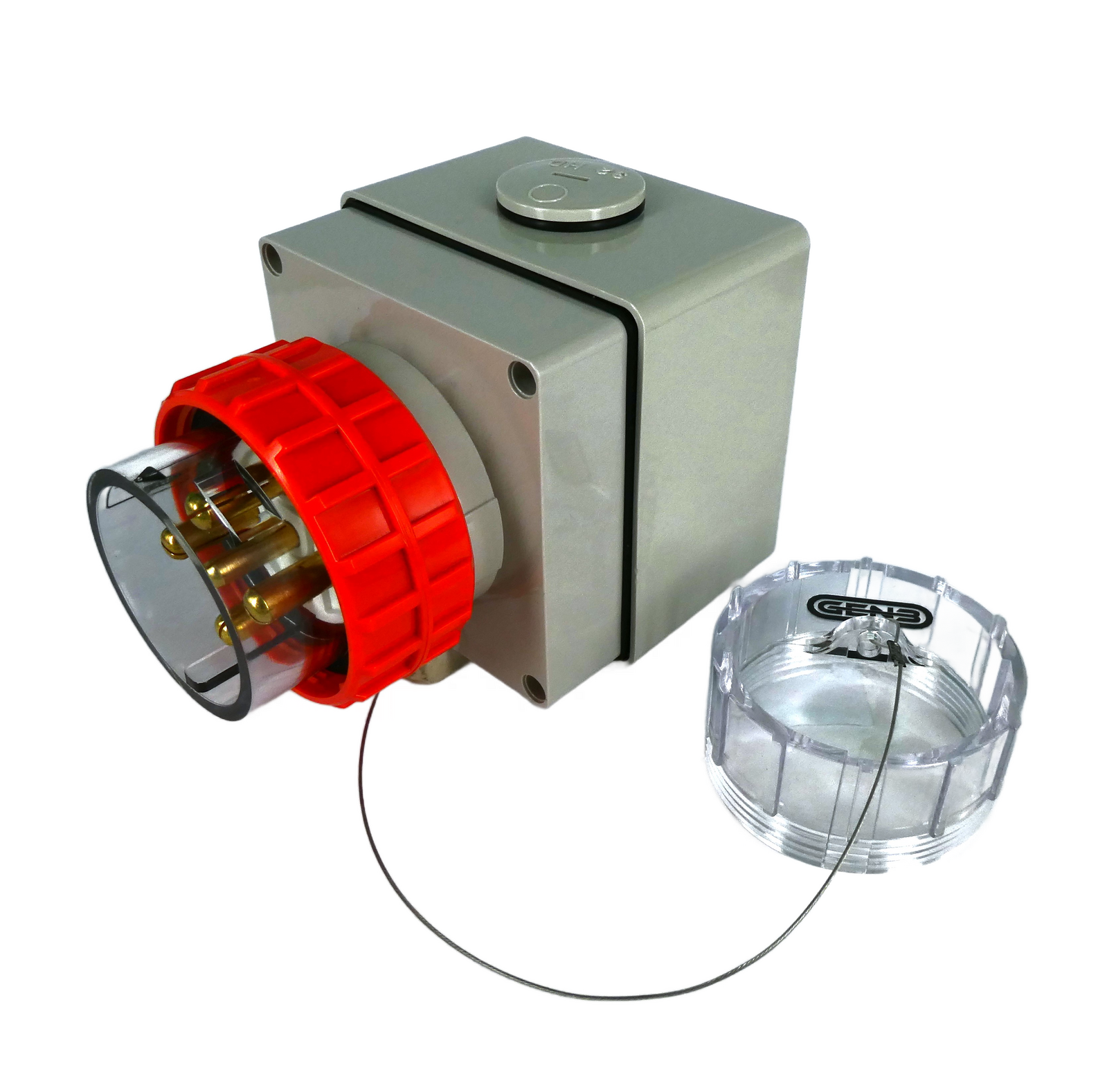

GEN3 GEN3AI550F 50A 3 Phase 5 Pin Round Industrial Electrical Appliance Inlet Flat
SKU: genappinl550f
GEN3 GEN3AI550F 50A 3 Phase 5 Pin Round Industrial Electrical Appliance Inlet Flat
$129.27 (ex-GST)
$142.20 (inc-GST)
- 8 In Stock
GEN3 32 AMP 3 Phase 5 Pin Appliance Inlet Industrial Electrical IP66
- New and popular product released by GEN3. Rare to find in the market.
- GEN3
- Item Code: GEN3AI550F
- 50 AMP 3 Phase 5 Pin Round Electrical Appliance Inlet.
- 5 Pin 50 Amp Appliance Inlet Flat
- 500 Volt
- Typically used for connection to Marine Craft, Portable Machinery, Transportable buildings, Food Vans & conversion of hard wired equipment to portable. Best in tight spaces.
- Dimensions: Base W 10cm x L 10cm H 9cm. Height with inlet 16cm
- All GEN3 Industrial Switch Gear is IP66 Rated
- All GEN3 plastics are PCA18 virgin grade (No regrind)
- All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
- All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
- All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
- All GEN3 products are interchangeable with other major brands.
- All GEN3 plug tops have compression glands for quick cable termination.
- All GEN3 switch sockets have mounting templates for fast and easy installation.
- GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius
(genappinl550f)
| General Specifications | |
| SKU | genappinl550f |
| Supplier Code | GEN3AI550F |
| Style | Series 56 Style |
| Rating | IP66 |
| Electrical Specifications | |
| Volts | 500V |
| Amps | 50Amp |
| Pins | 5 Pin |
| Pin Type | Round |
| Dimensions | |
| Length (mm) | 101 |
| Width (mm) | 101 |
| Depth (mm) | 160 |
| Packaging Details | |
| Box Length (cm) | 21.5 |
| Box Width (cm) | 10.5 |
| Box Height (cm) | 11.5 |
| Box Qty | 1 |
| Box Weight (kg) | 0.70 |
| Carton Qty | 12 |
| Material Specifications | |
| Plastics | PCA18 virgin grade (No regrind) |
| Springs and Screw | 316 Stainless Steel |
| Brass Components | Brass internal components are greater than 85% copper. |
| Compliance and Approvals | |
| Approvals | Products have Australian/NZ Approval Certificates. |
| Compatibility | |
| Compatibility | Products are interchangeable with other major brands. |
| SKU | genappinl550f |
| Manfacturer Part Number | GEN3AI550F |
| Colour | Grey |
| Brand | GEN3 |
