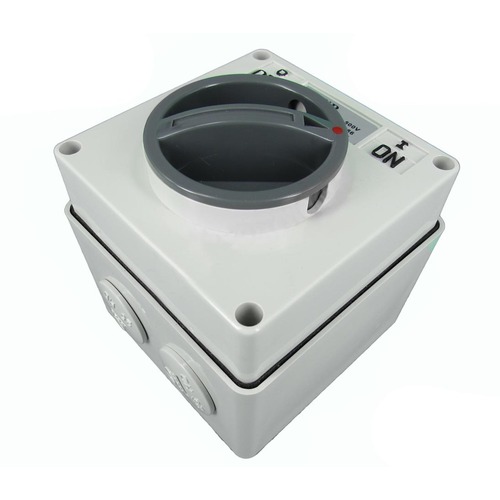

GEN3 GWR S2P10 10 AMP 2 Pole Weatherproof Surface Switch IP66

SKU: genswi210

$20.20

GEN3 GWR 10 AMP 2 Pole Weatherproof Surface Switch IP66



  • GEN3/GWR
  • Product Code - SP10
  • 10 AMP 2 Pole Weatherproof Surface Switch IP66
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
  • All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • All GEN3 plug tops have compression glands for quick cable termination.
  • All GEN3 switch sockets have mounting templates for fast and easy installation.
  • GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius
  • Colour is Grey

(genswi210)

General Specifications
SKU genswi210
Supplier Code S2P10
Style Series 56 Style
Rating IP66
Electrical Specifications
Volts 500V
Amps 10Amp
Poles 2 Pole
Min Cable Size (mm) 1.5
Max Cable Size (mm) 6
Dimensions
Length (mm) 108.9
Width (mm) 101
Depth (mm) 108.9
Packaging Details
Box Length (cm) 11.7
Box Width (cm) 10.8
Box Height (cm) 11.5
Box Qty 1
Box Weight (kg) 0.58
Carton Qty 24
Material Specifications
Plastics PCA18 virgin grade (No regrind)
Springs and Screw 316 Stainless Steel
Brass Components Brass internal components are greater than 85% copper.
Compliance and Approvals
Approvals Products have Australian/NZ Approval Certificates. [cite: 5, 6]
Compatibility
Compatibility Products are interchangeable with other major brands. [cite: 5, 6]
SKU genswi210
Manfacturer Part Number S2P10
Colour Grey
Brand GEN3
