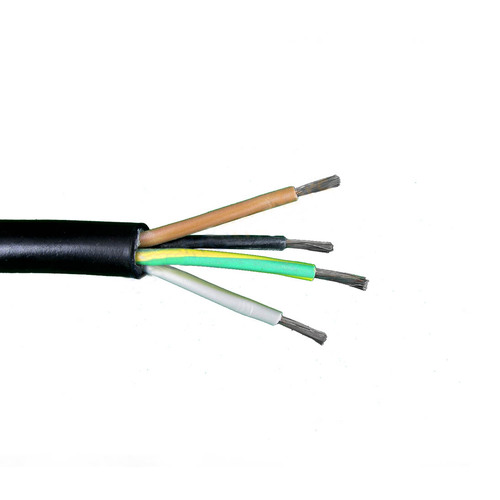

H07 Rubber Flexible Cable Three Phase 4 Core 4 mm2 per Metre

SKU: cabh074g4

$8.90

H07 Rubber Flexible Cable Three Phase 4 Core 4 mm2 per Metre


Order In Lots Of 5 Minimum Order Quantity 5

  • H07 Rubber Flexible Cable Three Phase 4 Core 4 mm2 per Metre
  • Typically used at event & temporary cabling, fairgrounds, sporting venues, flexible connections to motors, generators, compressors and portable equipment,
    construction site leads, wet or oily environments, mine sites and quarries, submersible pumps, limit switches and many other applications.
  • Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
  • Rated to 36 Amps
  • Cable CSA 4.0mm2
  • Nominal Cable Diameter 14.2mm
  • Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
  • Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
  • Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.
  • Rated Voltage - 0.6/1kV
  • The cable is submersible to 200mtrs, Suitable for fresh water, salt water, sewage/contaminated water. UV,
    Sunlight and weather resistant. Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004.
  • Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)
  • This flex has full Australian Approvals.


Pricing:

  • Cable is priced per metre.

How to Order your Quantity:

  • To order, specify the quantity in metre units. For example, to order 15 metres, enter 15 as the order quantity.
  • All quantities will be supplied in one continuous length up to 500 metres unless otherwise requested.
  • Please choose cable type & length carefully as there are no refunds or exchanges on cut to order material.

(cabh074g4)

SKU cabh074g4
Colour Black
Brand Unbranded
