087 Amp Rated H07 Rubber Flexible Cable 2 Core & Earth 16mm 5m Cut

SKU: cabh073g16.5m

$124.74

Select Your Product Options


Product on Back order More Stock Available in 1-7 Days

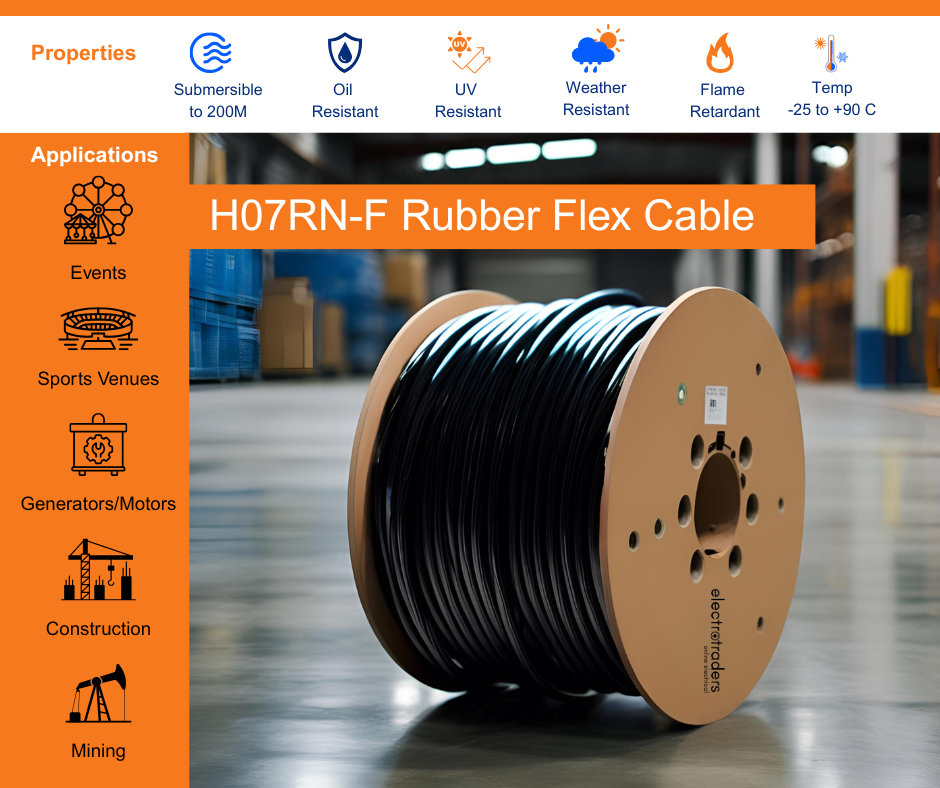

  • H07 rubber flexible cable is a heavy-duty, flexible cable with a rubber sheath, designed for industrial and demanding applications, offering resistance to oil, chemicals, water, and abrasion
  • Typically used at event & temporary cabling, fairgrounds, sporting venues, flexible connections to motors, generators, compressors and portable equipment,
    construction site leads, wet or oily environments, mine sites and quarries, submersible pumps, limit switches and many other applications.
  • Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
  • Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
  • Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
  • Outer Jacket - Chlorinated Polyethylene, CPE rubber compound
  • Rated Voltage - 0.6/1kV
  • Minimum Bending Radius - 4 x D (fixed), 5 x D (mobile), D = outside diameter
  • The cable is submersible to 200mtrs
  • Suitable for fresh water, salt water, sewage/contaminated water
  • UV, Sunlight, oil and weather resistant
  • Flame retardant to IEC 60332-1-2:2004, EN60332-1-2-2004
  • Temperature range -25°C to +90°C
  • Maximum permisible short circuit temperature 1s 250°C
  • ELFLEX R-EP-90 ELECTRIC CABLE 0.6/1kV > (No. of cores) x (mm2)>MTR MARK<
  • This flex has full Australian Approvals.


(cabh073g16)

SKU cabh073g16
Manfacturer Part Number FMR3G16
Colour Black
Brand Unbranded
