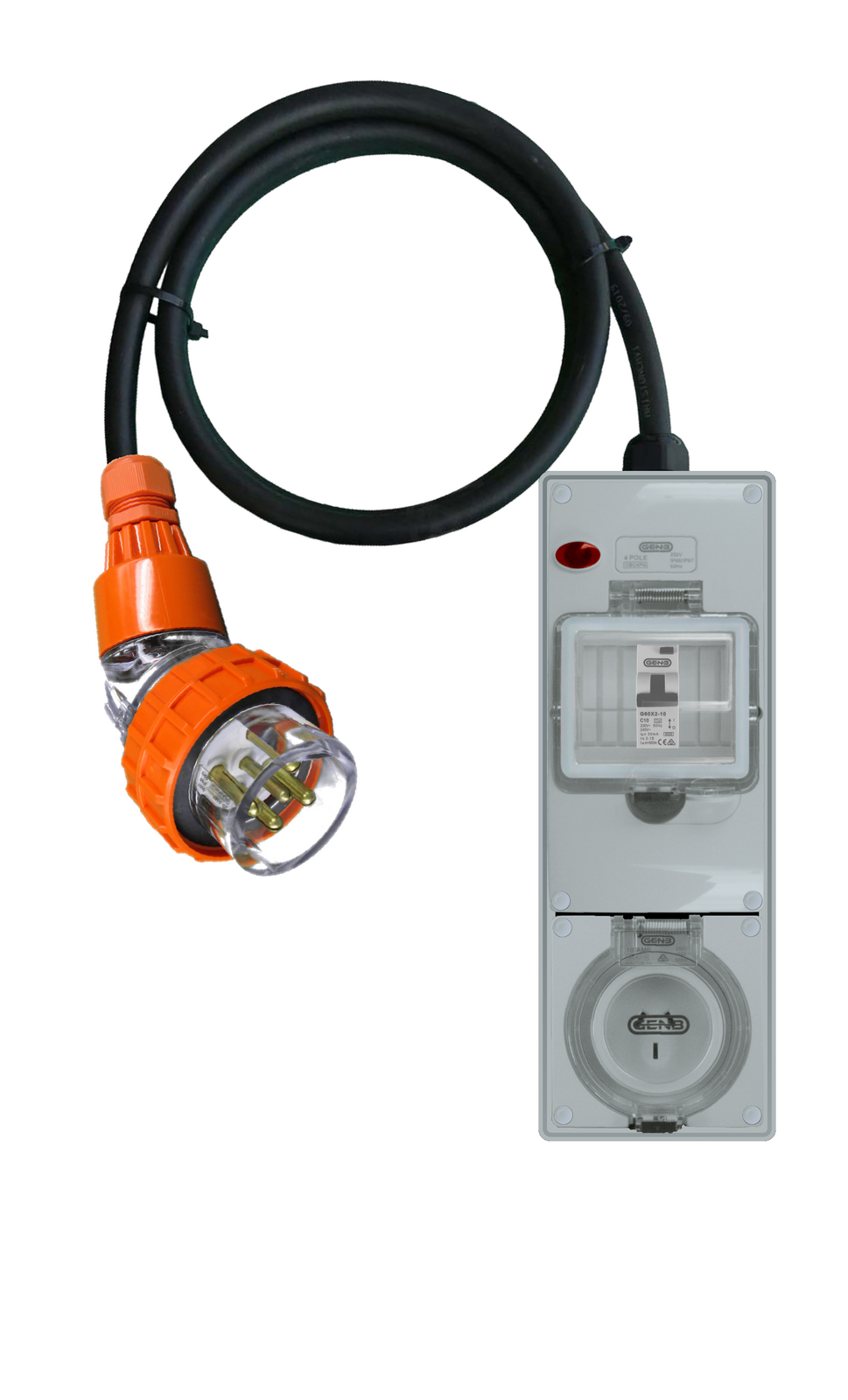

Power Adapter 5 Pin 20 Amp Three Phase to 3 Pin 10 Amp Single Phase Surface Socket RCBO Protected

• Power Adapter 5 Pin 20 Amp Three Phase to 3 Pin 10 Amp Single Phase Outlet/Socket RCBO Protected
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Power Adapters are assembled, tested and tagged in-house by our Licenced Electricians.

Lead Time:

• Standard: 1-2 days dispatch from order. We will advise if outside of this range.
• Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select “expedited shipping” at the checkout.

Choose your configuration:

• Socket configurations available:
  • Surface Socket mounted inside a module base alongside the Circuit Breaker cover and RCBO
  • Extension socket on rubber lead in lengths of: 2m, 7m, 12m (note: add plug lead, specified below, for total end-to-end length)
• Plug: Angled Extension Plug (45 degree angle) on a 3 metre (3m) H07 rubber lead (see specs below)
• Hanging Bracket: Optional fitted stainless steel hanging bracket.
• Dimensions: Surface socket configurations are mounted on a 3 Module Base approx (mm) 100w x 300h x 100d. All extension socket configurations are mounted on a 2 Module Base approx (mm) 100w x 200h x 100d
• Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren’t sure, contact us, we are happy to help.

Switch Gear:

• All GEN3 Industrial Switch Gear and power board module bases are Series 56 style IP66 Rated sourced from high quality reputable Australian brands, and are compatible with all leading Australian switch gear.
• All GEN3 plastics are PCA18 virgin grade (No regrind)
• All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
• All Brass internal components are greater than 85% copper.
• All GEN3 products have Australian/NZ Approval Certificates.
• All GEN3 products are interchangeable with other major brands.
• Automatic Switched sockets are used for Single Phase 3 Pin 10A and 15A sockets (no separate switch required), all other sockets are not switched

Cable:

• Leads use Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• Cable Specifications:
  • Plug lead: Three Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 1.9mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 13.4mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 299 Kg/Km
  • Extension lead (if applicable): Three Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 1.9mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 13.4mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 299 Kg/Km
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV
