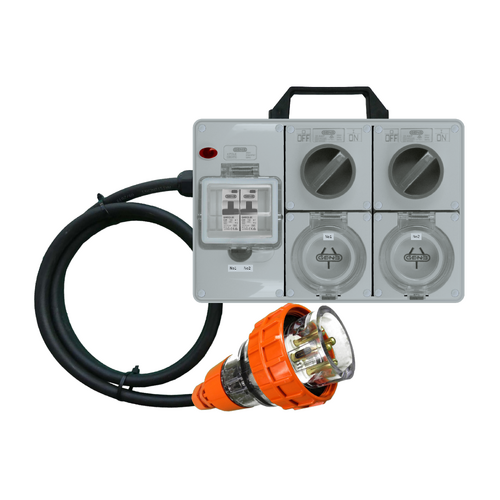

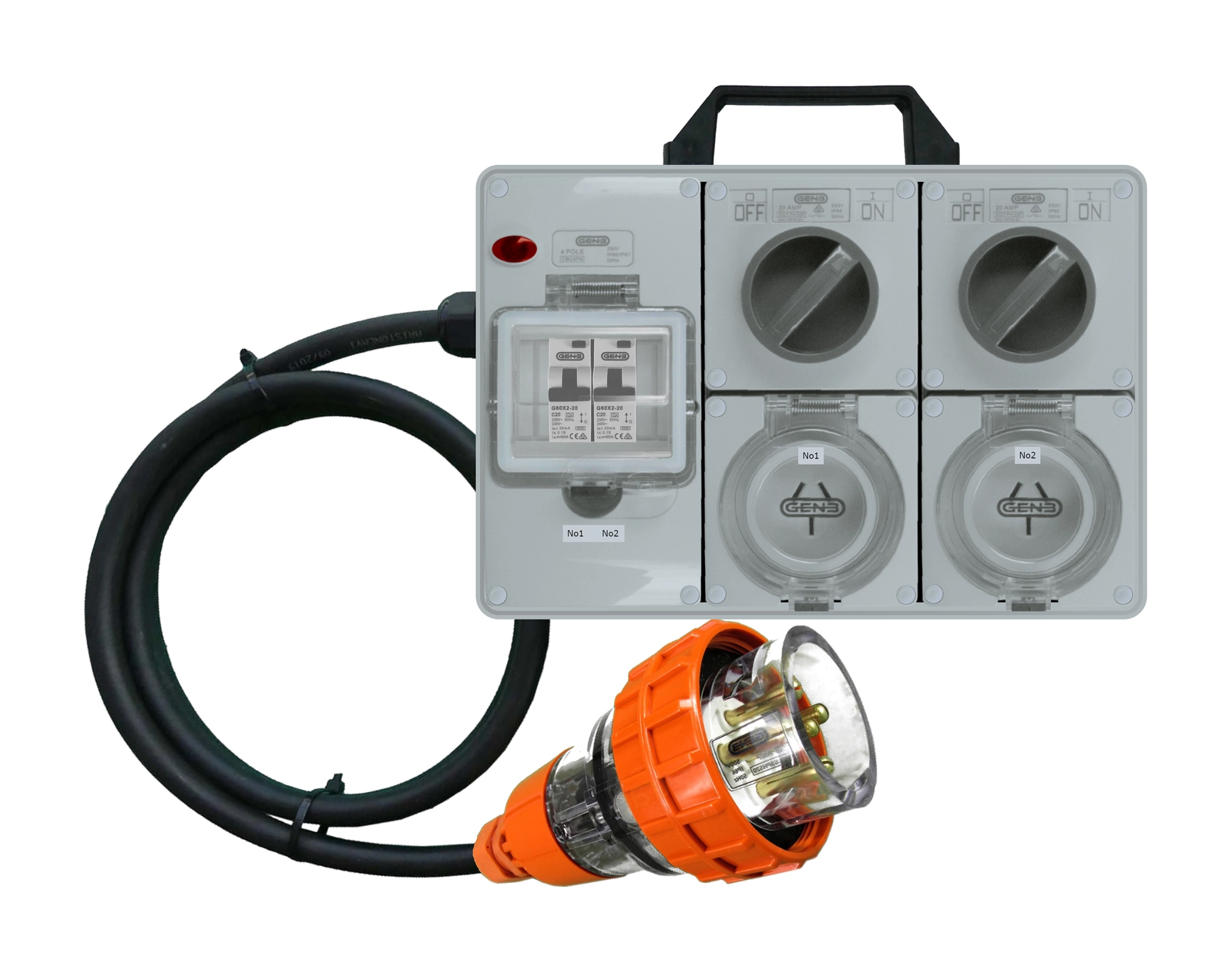

Power Board 5 Pin 20A to 3 Pin 20A Flat RCBO Protected 2 Switched Outlets 2m Lead

IMPORTANT: For a limited time until March 2025 we are using an alternate 8 module base with cable entries on the bottom and top of the power board. This won't present a problem when using a hanging bracket with the board, but needs to be considered if you want the board to stand up. During this time the board will differ slightly from the images presented.

• Power Board 5 Pin 20A to 3 Pin 20A Flat RCBO Protected
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Power Boards are assembled, tested and tagged in-house by our Licenced Electricians.

Lead Time:

• Standard: 1-2 days dispatch from order. We will advise if outside of this range.
• Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select "expedited shipping" at the checkout.

Choose your configuration:

• Socket configurations available:
  • 2 Socket option:

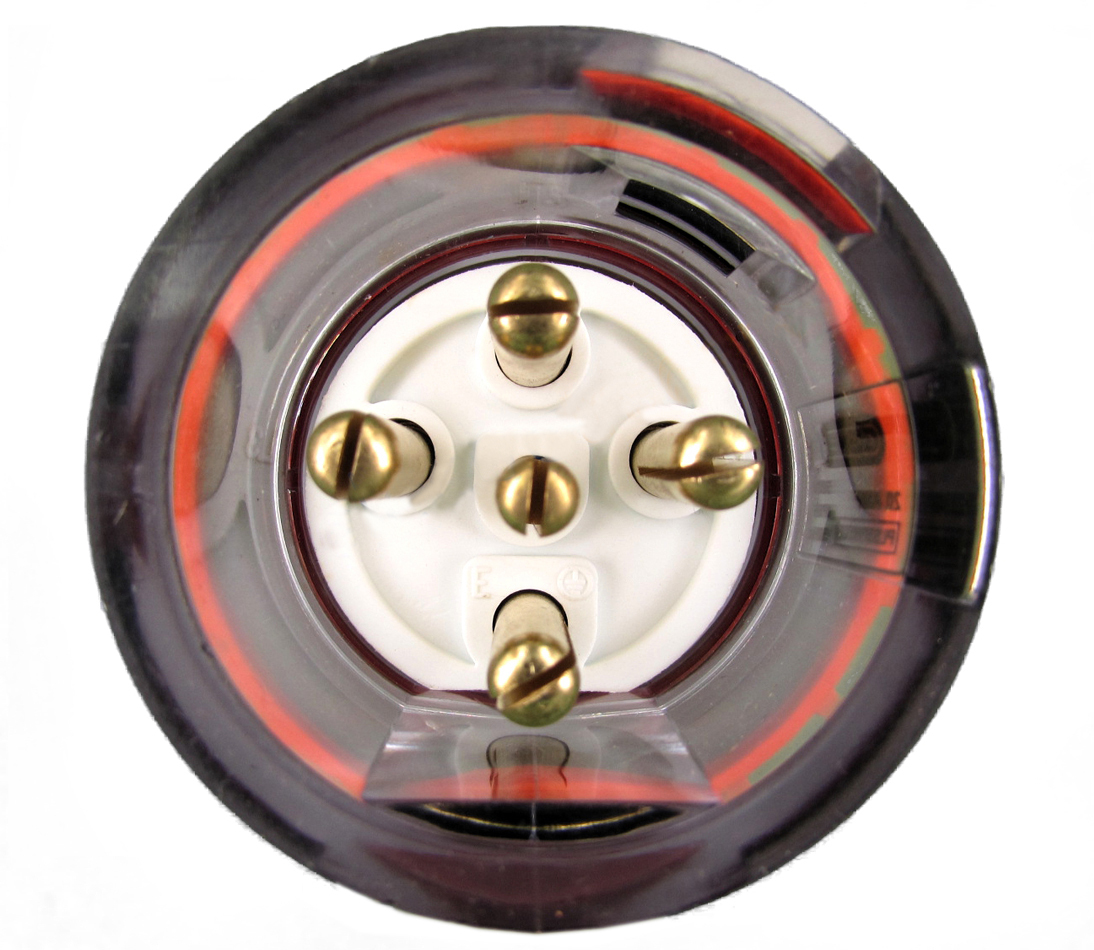

    • 2 x 3 Pin Flat 20 Amp Single Phase 240 Volt Outlets from a 5 Pin 20 Amp Three Phase supply
    • Circuit Protected by 2 x Double Pole GEN3 20 Amp 6kA RCBOs
    • Mounted inside a 6 Module Base with approx dimensions (mm) 300w x 200h x 100d
    • Plug lead is Four Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 2.1mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 14.9mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 368 Kg/Km
  • 3 Socket option:
    • 3 x 3 Pin Flat 20 Amp Single Phase 240 Volt Outlets from a 5 Pin 20 Amp Three Phase supply
    • Circuit Protected by 3 x Double Pole GEN3 20 Amp 6kA RCBOs
    • Mounted inside an 8 Module Base with approx dimensions (mm) 400w x 200h x 100d
    • Plug lead is Five Core: Cross-Sectional Area (CSA) = 2.5mm2, Nominal Sheath Thickness (NST) = 2.1mm, Max DC Resistance @20degC = 8.21 ohms/KM, Nominal Diameter (NOD) = 13.5mm, Amperage rating = 27 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 306 Kg/Km
  • 3 Socket option (back-to-back module bases):
    • 3 x 3 Pin Flat 20 Amp Single Phase 240 Volt Outlets from a 5 Pin 20 Amp Three Phase supply
    • Circuit Protected by 3 x Double Pole GEN3 20 Amp 6kA RCBOs
    • Mounted inside two back-to-back 4 Module Bases with combined approx dimensions (mm) 200w x 200h x 200d
    • Plug lead is Five Core: Cross-Sectional Area (CSA) = 2.5mm2, Nominal Sheath Thickness (NST) = 2.1mm, Max DC Resistance @20degC = 8.21 ohms/KM, Nominal Diameter (NOD) = 13.5mm, Amperage rating = 27 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 306 Kg/Km
• Lead: choose from a range of lead (cable) lengths to suit your needs.
• Hanging Bracket: Optional fitted stainless steel hanging bracket (not available on some configurations).
• Handle: Insulated handle (140mm) is included with all boards.
• Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets on the power board. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

GEN3:

• Switch Gear and power board module bases are Series 56 style IP66 Rated sourced from high quality reputable Australian brands, and are compatible with all leading Australian switch gear.
• Plastics are PCA18 virgin grade (No regrind)
• Products use 316 Stainless Steel Springs and Mounting Screws.
• Brass internal components are greater than 85% copper.
• Products have Australian/NZ Approval Certificates.
• Products are interchangeable with other major brands.

Note: Automatic Switched sockets are used for Single Phase 3 Pin 10A and 15A sockets (no separate switch required), all other sockets contain a surface switch in the form of a combined socket & switch module

Cable Properties:

• Leads use Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Please consult with a qualified electrician or engineer about the product for your intended purpose.
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV
