Power Board 5 Pin 63A CEE Form to 5 Pin 32A and 3 Pin 32A 20A 15A RCBO Protected 2m Lead

IMPORTANT: For a limited time until March 2025 we are using an alternate 8 module base with cable entries on the bottom and top of the power board. This won't present a problem when using a hanging bracket with the board, but needs to be considered if you want the board to stand up. During this time the board will differ slightly from the images presented.

• Power Board 5 Pin 63A CEE Form - various outlet options - RCBO Protected
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Power Boards are assembled, tested and tagged in-house by our Licenced Electricians.

Lead Time:

• Standard: 1-2 days dispatch from order. We will advise if outside of this range.
• Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select "expedited shipping" at the checkout.

Choose your Power Board Configuration:

• Socket configurations available:

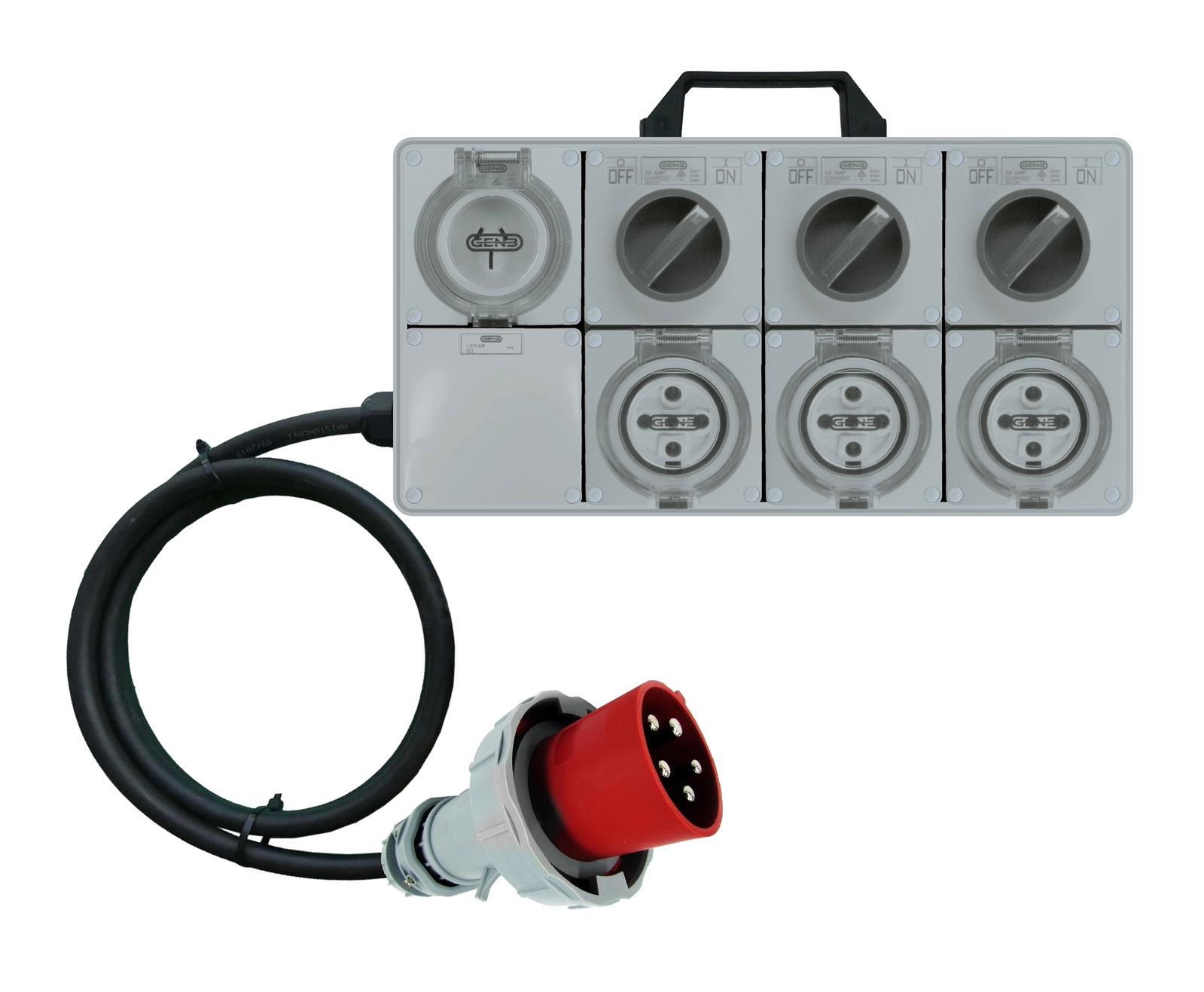

  • 5 Pin 32A / 3 Pin 15A
    • 3 x 5 Pin 32 Amp Three Phase 415V Switched Socket Combination Outlets
    • 1 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlet

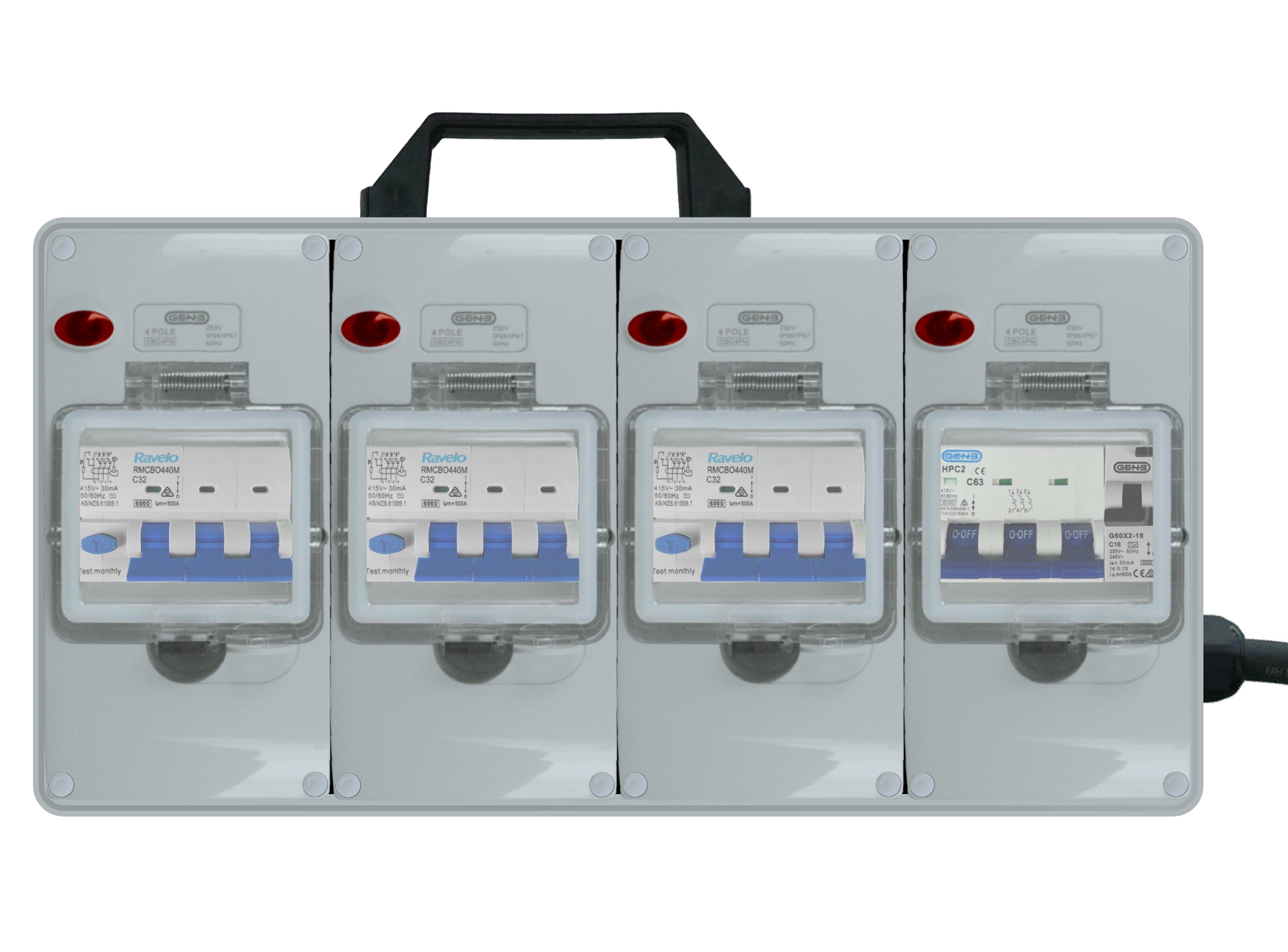

    • Circuit Protected by 3 x 4-Pole Ravelo 32 Amp 6kA RCBO and 1 x 2-Pole GEN3 16 Amp 6kA RCBO with a 3-Pole GEN3 63 Amp 6kA Circuit Breaker
  • 5 Pin 32A & 20A / 3 Pin 15A (v1)
    • 2 x 5 Pin 32 Amp Three Phase 415V Switched Socket Combination Outlets
    • 1 x 5 Pin 20 Amp Three Phase 415V Switched Socket Combination Outlet
    • 1 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlet
    • Circuit Protected by 2 x 4-Pole Ravelo 32 Amp 6kA RCBO, 1 x 4-Pole Ravelo 20 Amp 6kA RCBO and 1 x 2-Pole GEN3 16 Amp 6kA RCBO with a 3-Pole GEN3 63 Amp 6kA Circuit Breaker
  • 5 Pin 32A & 20A / 3 Pin 15A (v2)
    • 1 x 5 Pin 32 Amp Three Phase 415V Switched Socket Combination Outlet
    • 1 x 5 Pin 20 Amp Three Phase 415V Switched Socket Combination Outlet
    • 3 x 3 Pin 15 Amp (Auto Switched) Single Phase 240V Outlets
    • Circuit Protected by 1 x 4-Pole Ravelo 32 Amp 6kA RCBO, 1 x 4-Pole Ravelo 20 Amp 6kA RCBO and 3 x 2-Pole GEN3 16 Amp 6kA RCBO with a 3-Pole GEN3 63 Amp 6kA Circuit Breaker
  • 5 Pin 32A / 3 Pin 32A & 20A & 15A
    • 1 x 5 Pin 32 Amp Three Phase 415V Switched Socket Combination Outlet
    • 1 x 3 Pin 32 Amp Single Phase 240V Switched Socket Combination Outlet
    • 1 x 3 Pin 20 Amp Round Pin Single Phase 240V Switched Socket Combination Outlet
    • 1 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlet
    • Circuit Protected by 1 x 4-Pole Ravelo 32 Amp 6kA RCBO, 1 x 2-Pole GEN3 32 Amp 6kA RCBO, 1 x 2-Pole GEN3 20 Amp 6kA RCBO and 3 x 2-Pole GEN3 16 Amp 6kA RCBO with a 3-Pole GEN3 63 Amp 6kA Circuit Breaker

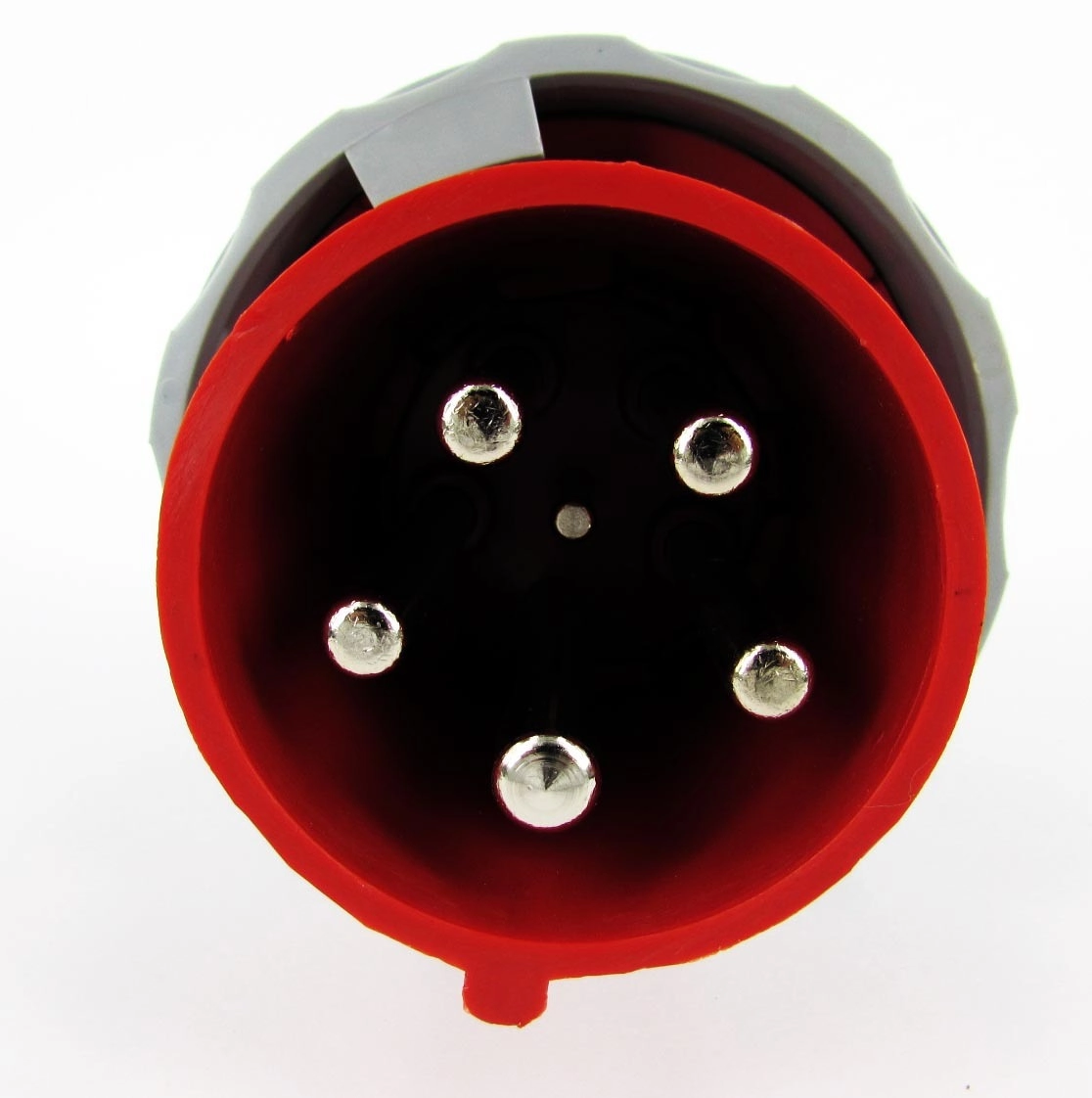

• Plug: 5 Pin 63 Amp CEE Form (IEC 60309) extension plug rated IP67
• Lead:
  • Plug Lead is Five Core: Cross-Sectional Area (CSA) = 10mm2, Nominal Sheath Thickness (NST) = 3.6mm, Max DC Resistance @20degC = 1.95 ohms/KM, Nominal Diameter (NOD) = 22.3 mm, Amperage rating = 66 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 1025 Kg/Km
  • Choose from a range of lead (cable) lengths to suit your needs.

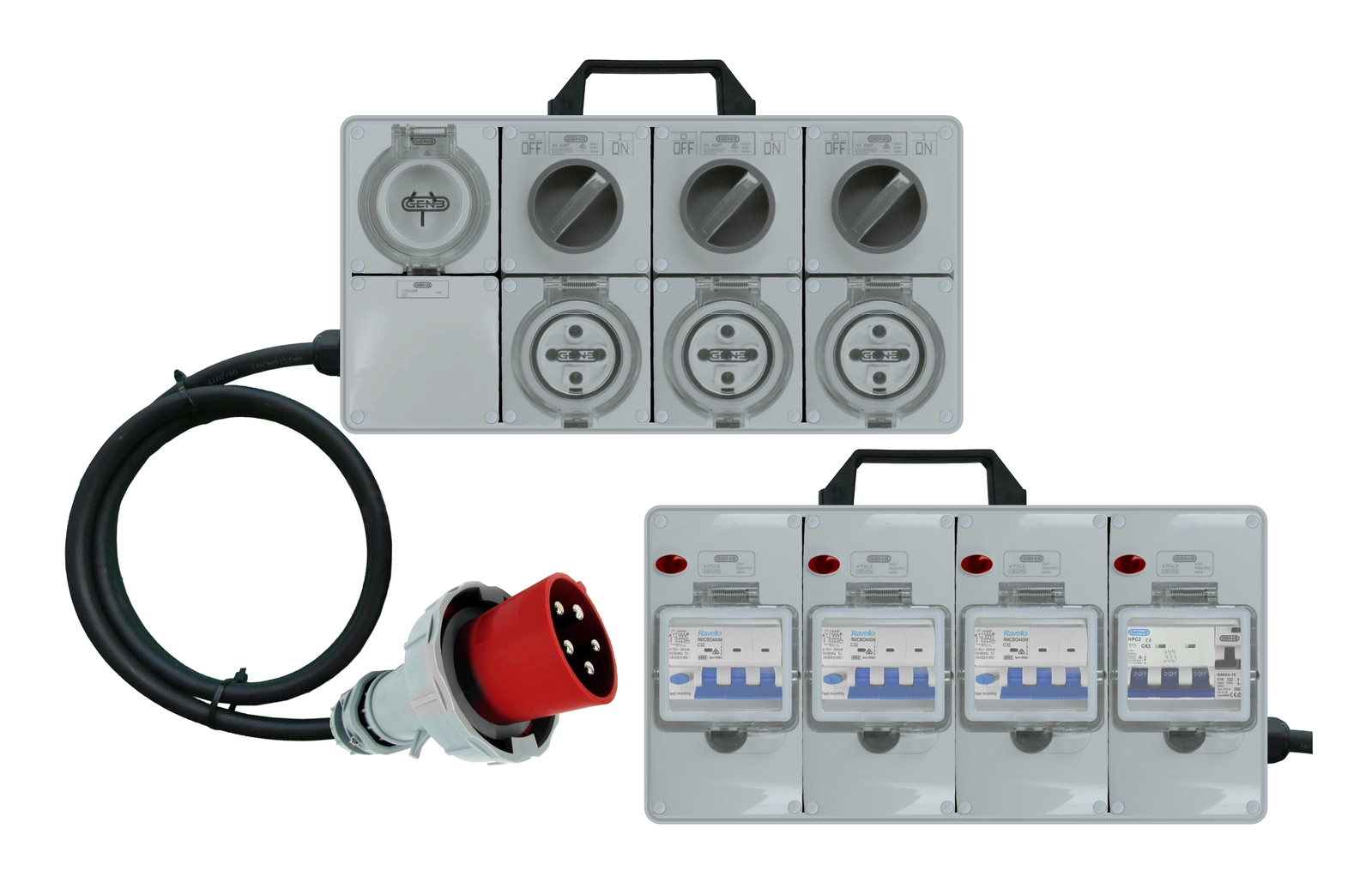

• Module Base: Mounted inside two back-to-back 8 Module Bases with combined approx dimensions (mm) 400w x 200h x 200d
• Handle: Insulated handle (140mm) is included with all boards.
• Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.

IMPORTANT: Avoid extra costs and fees of ordering the wrong board. Before you order: confirm the compatibility of the plug and sockets on the power board. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

• All GEN3 Industrial Switch Gear and power board module bases are Series 56 style IP66 Rated sourced from high quality reputable Australian brands, and are compatible with all leading Australian switch gear.
• All GEN3 plastics are PCA18 virgin grade (No regrind)
• All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
• All Brass internal components are greater than 85% copper.
• All GEN3 products have Australian/NZ Approval Certificates.
• All GEN3 products are interchangeable with other major brands.
• Automatic Switched sockets are used for Single Phase 3 Pin 10A and 15A sockets (no separate switch required), all other sockets contain a surface switch in the form of a combined socket & switch module

Cable Properties:

• Leads use Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Please consult with a qualified electrician or engineer about the suitability of this power board for your intended purpose.
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV
